HGW HYDRAULICS

1704-16-16-SS

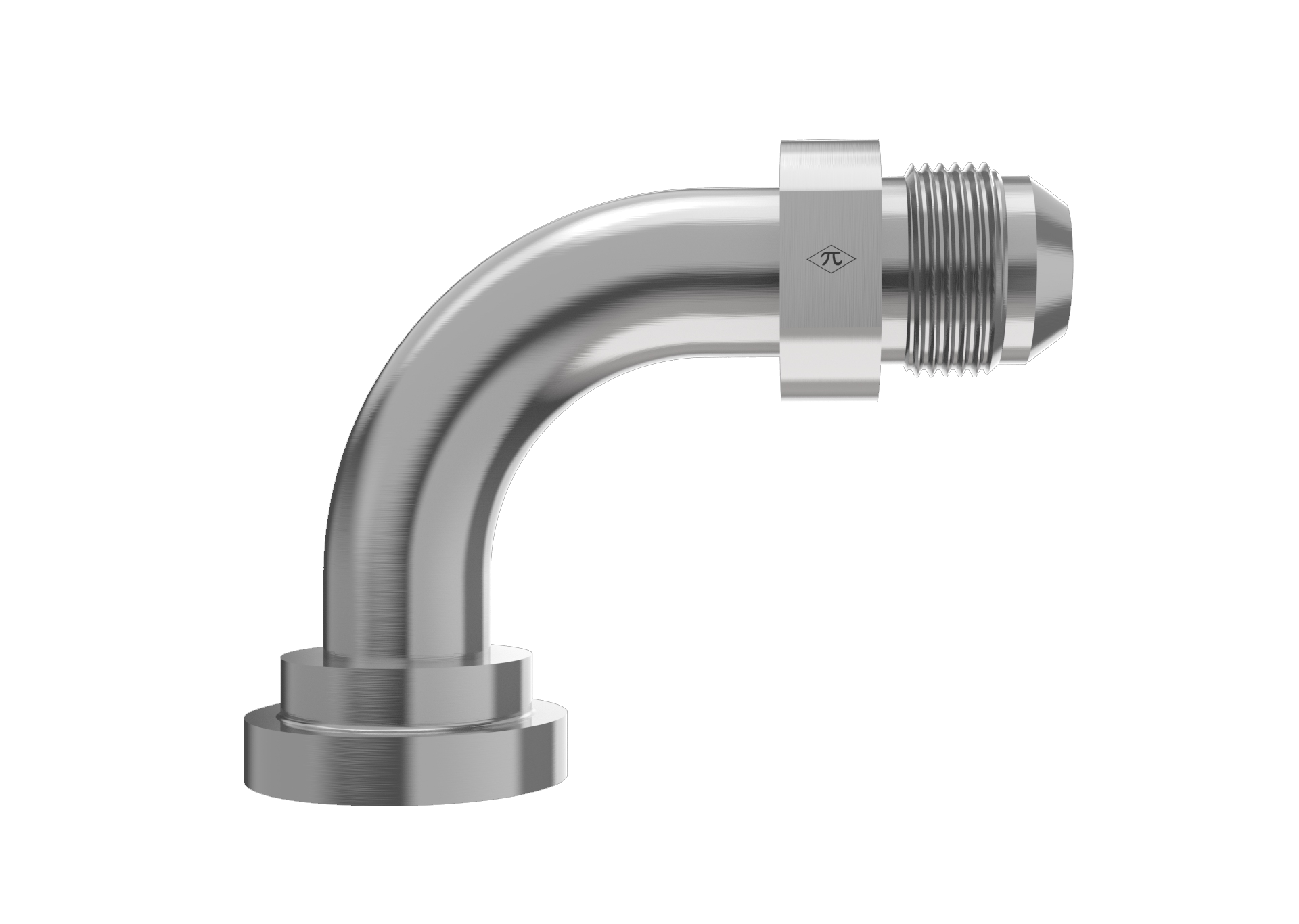

1" Male JIC x 1" Split Flange Head

1704-16-16-SS is a 1" Male JIC x 1" Split Flange Head in the 1704 Series. For adapting 37° flared tubes or lines to an SAE Code 61 Flange port at a 90° swept angle to reduce flow restriction and improve hose routing.

  • Stainless Steel
  • Passivated
  • Male Swept Elbow
$261.84
(0) Write a Review

Product Details

Connection A
TypeMale JIC
Tube OD1"
StandardSAE J514 - Class 2A Thread
Thread Type1-5/16-12 UN
Connection B
TypeSplit Flange Head
Size1"
StandardSAE J518
Thread Type1-5/16-12 UN
Connection C
Connection D
Specifications
MaterialStainless Steel
PlatingPassivated
ShapeMale Swept Elbow
Weight1.04 lb
Cross References
Aeroquip259-500024-16
Parker19T3-16-16-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
