1704-16-24

1" Male JIC x 1-1/2" Split Flange Head

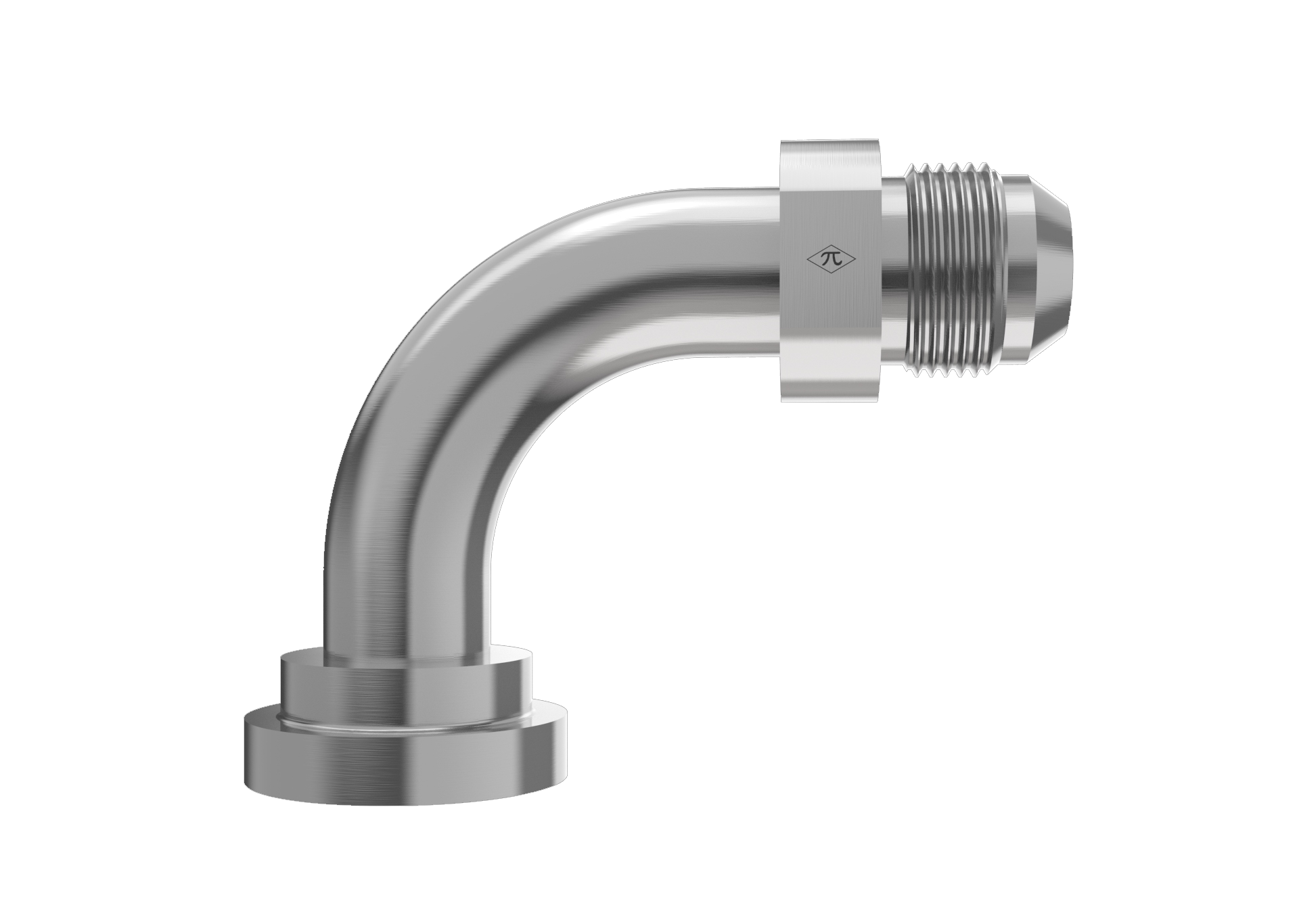

1704-16-24 is a 1" Male JIC x 1-1/2" Split Flange Head in the 1704 Series. For adapting 37° flared tubes or lines to an SAE Code 61 Flange port at a 90° swept angle to reduce flow restriction and improve hose routing.

  • Steel
  • Trivalent Zinc
  • Male Swept Elbow
$53.48
(0) Write a Review

Product Details

Connection A
TypeMale JIC
Tube OD1"
StandardSAE J514 - Class 2A Thread
Thread Type1-5/16-12 UN
Connection B
TypeSplit Flange Head
Size1-1/2"
StandardSAE J518
Thread Type1-5/16-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Swept Elbow
Weight1.34 lb
Cross References
Aeroquip500024-24-16S
Parker4NH3-24-16

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
