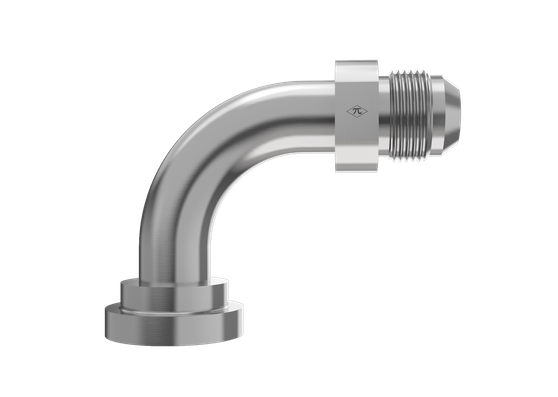

Google Merchant product image

HGW HYDRAULICS

1704-24-16

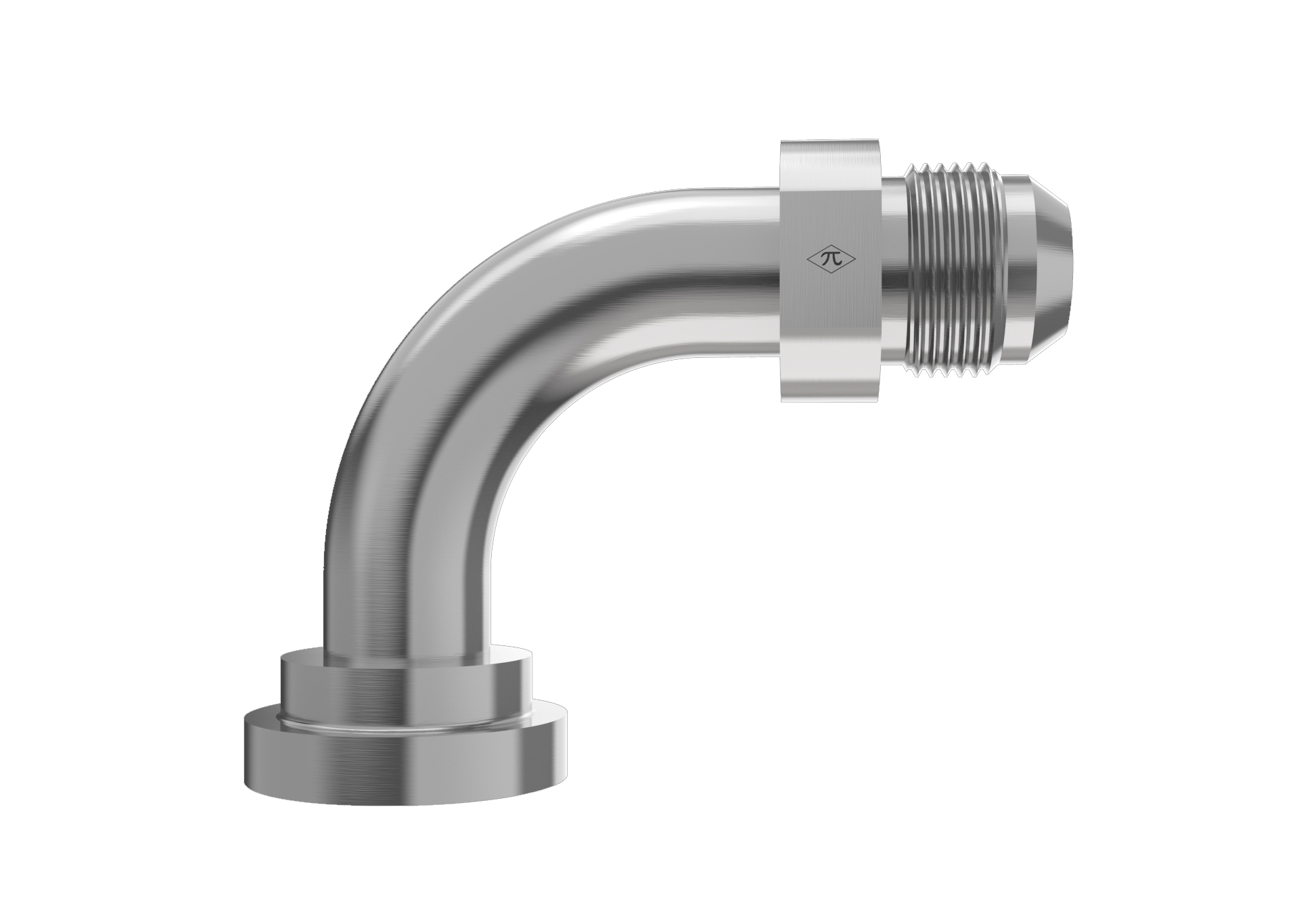

1-1/2" Male JIC x 1" Split Flange Head

1704-24-16 is a 1-1/2" Male JIC x 1" Split Flange Head in the 1704 Series. For adapting 37° flared tubes or lines to an SAE Code 61 Flange port at a 90° swept angle to reduce flow restriction and improve hose routing.

  • Steel
  • Trivalent Zinc
  • Male Swept Elbow
$69.64
(0) Write a Review

Product Details

Connection A
TypeMale JIC
Tube OD1-1/2"
StandardSAE J514 - Class 2A Thread
Thread Type1-7/8-12 UN
Connection B
TypeSplit Flange Head
Size1"
StandardSAE J518
Thread Type1-7/8-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Swept Elbow
Weight1.85 lb
Cross References
Aeroquip500024-16-24S
Parker4NH3-16-24

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
