1704-32-40-FG

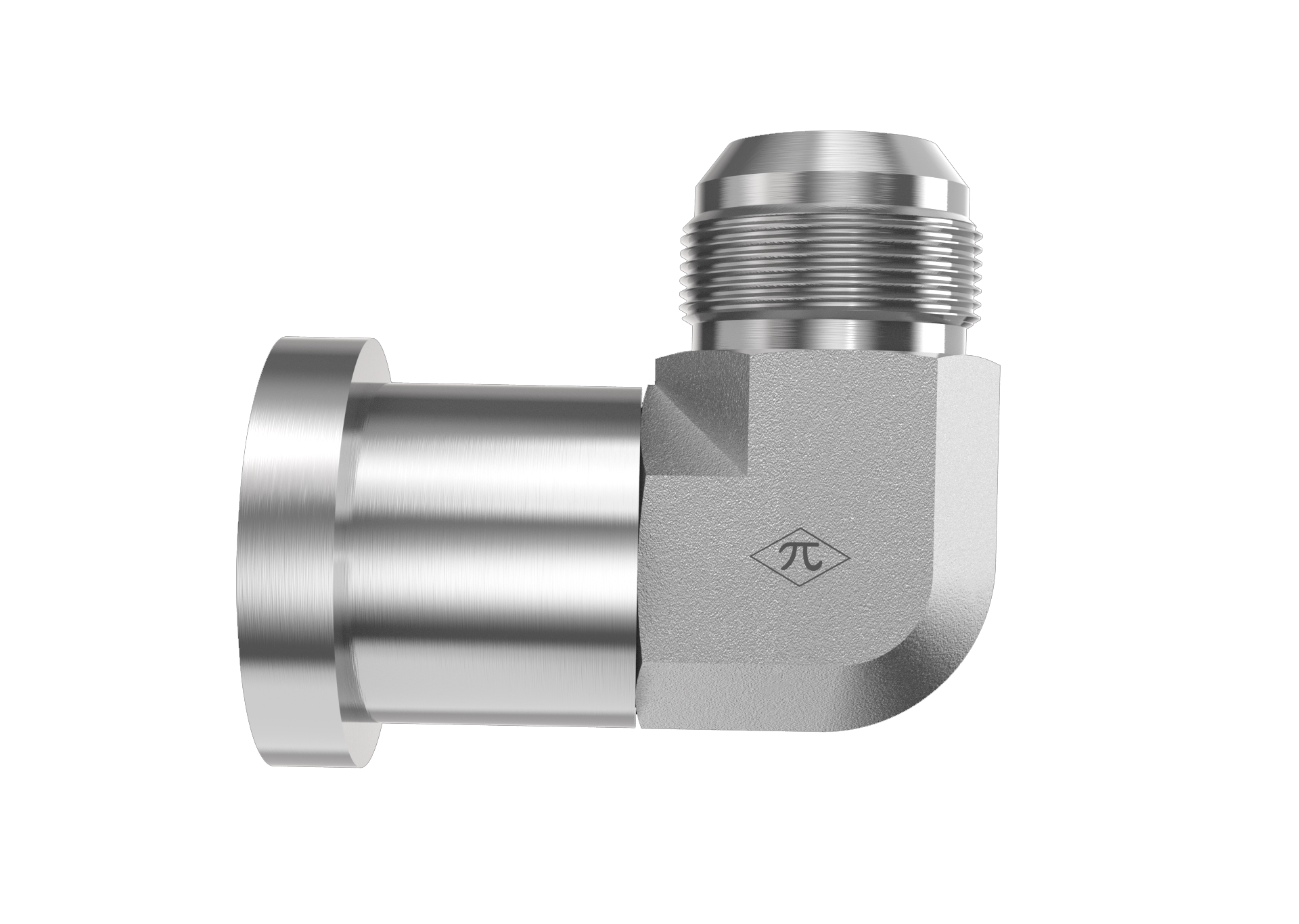

2" Male JIC x 2-1/2" Split Flange Head

1704-32-40-FG is a 2" Male JIC x 2-1/2" Split Flange Head in the 1704-FG Series. For adapting 37° flared tubes or lines to an SAE Code 61 Flange port at a 90° angle using a forged body for additional strength.

  • Steel
  • Trivalent Zinc
  • Male Forged Elbow
$1,032.84
(0) Write a Review

Product Details

Connection A
TypeMale JIC
Tube OD2"
StandardSAE J514 - Class 2A Thread
Thread Type2-1/2-12 UN
Connection B
TypeSplit Flange Head
Size2-1/2"
StandardSAE J518
Thread Type2-1/2-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Forged Elbow
Weight5.02 lb
Cross References
Parker32-40 XEQ1-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
