HGW HYDRAULICS

1710-12-12

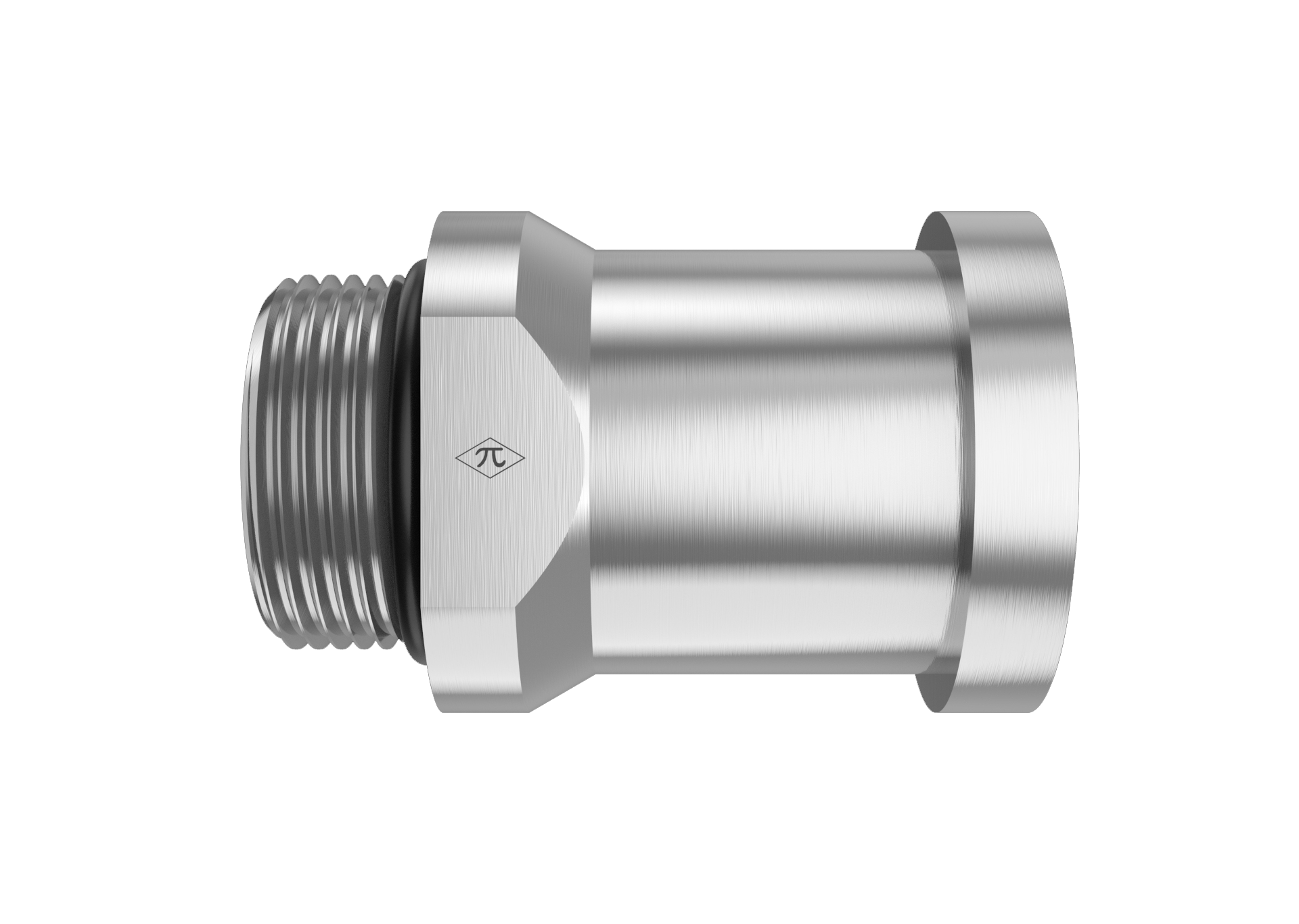

1-1/16-12 Male ORB x 3/4" Split Flange Head

1710-12-12 is a 1-1/16-12 Male ORB x 3/4" Split Flange Head in the 1710 Series. For adapting an O-Ring Boss port to an SAE Code 61 Flange port.

  • Steel
  • Trivalent Zinc
  • Male Adapter
$50.41
(0) Write a Review

Product Details

Connection A
TypeMale ORB
Port Size1-1/16-12
StandardSAE J1926
Thread Type1-1/16-12 UN
Connection B
TypeSplit Flange Head
Size3/4"
StandardSAE J518
Thread Type1-1/16-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Adapter
Weight0.60 lb
Cross References
Parker12 F5OHQ1-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
