HGW HYDRAULICS

1710-16-16

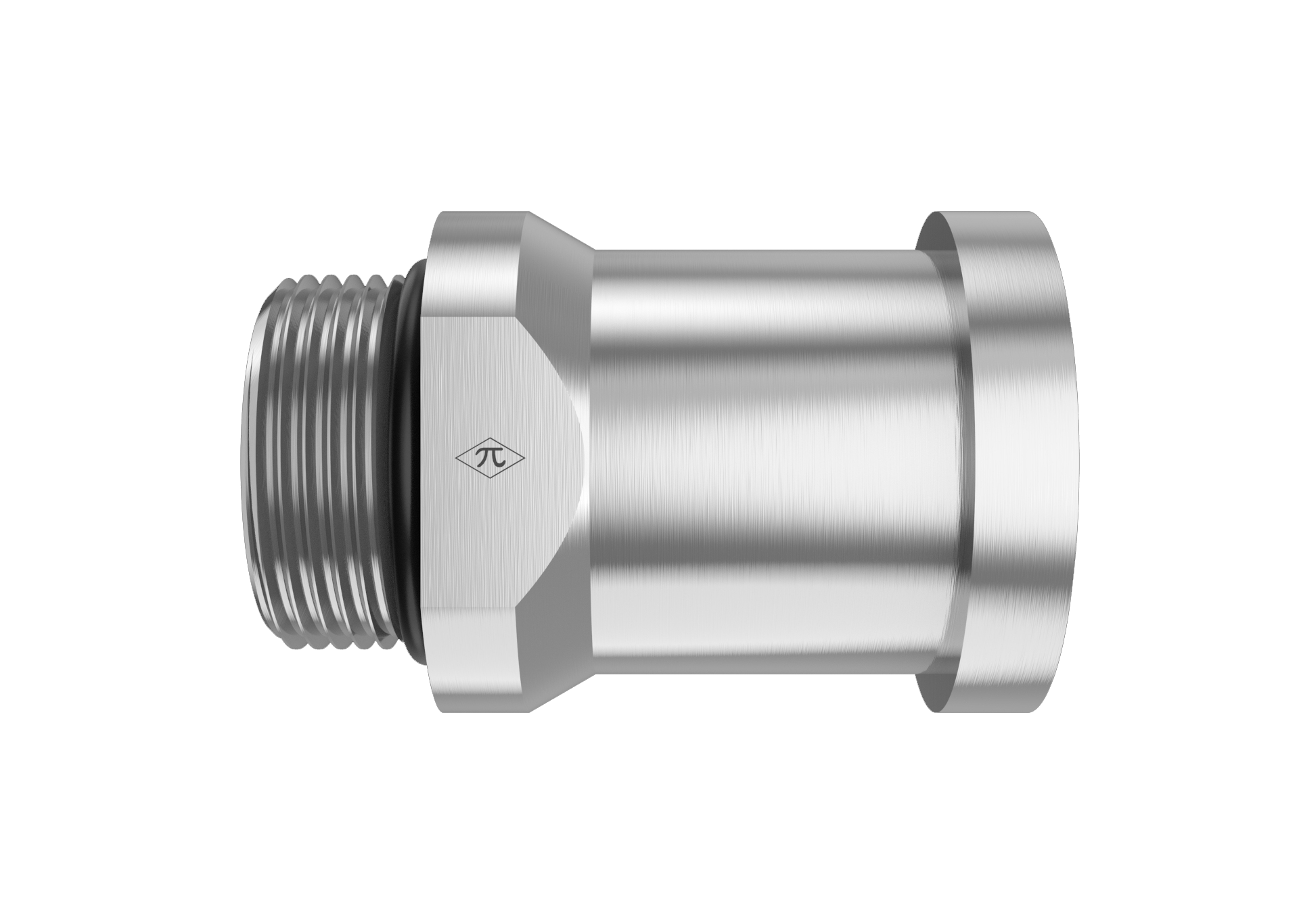

1-5/16-12 Male ORB x 1" Split Flange Head

1710-16-16 is a 1-5/16-12 Male ORB x 1" Split Flange Head in the 1710 Series. For adapting an O-Ring Boss port to an SAE Code 61 Flange port.

  • Steel
  • Trivalent Zinc
  • Male Adapter
$55.98
(0) Write a Review

Product Details

Connection A
TypeMale ORB
Port Size1-5/16-12
StandardSAE J1926
Thread Type1-5/16-12 UN
Connection B
TypeSplit Flange Head
Size1"
StandardSAE J518
Thread Type1-5/16-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Adapter
Weight0.87 lb
Cross References
Parker16 F5OHQ1-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
