1710-24-32

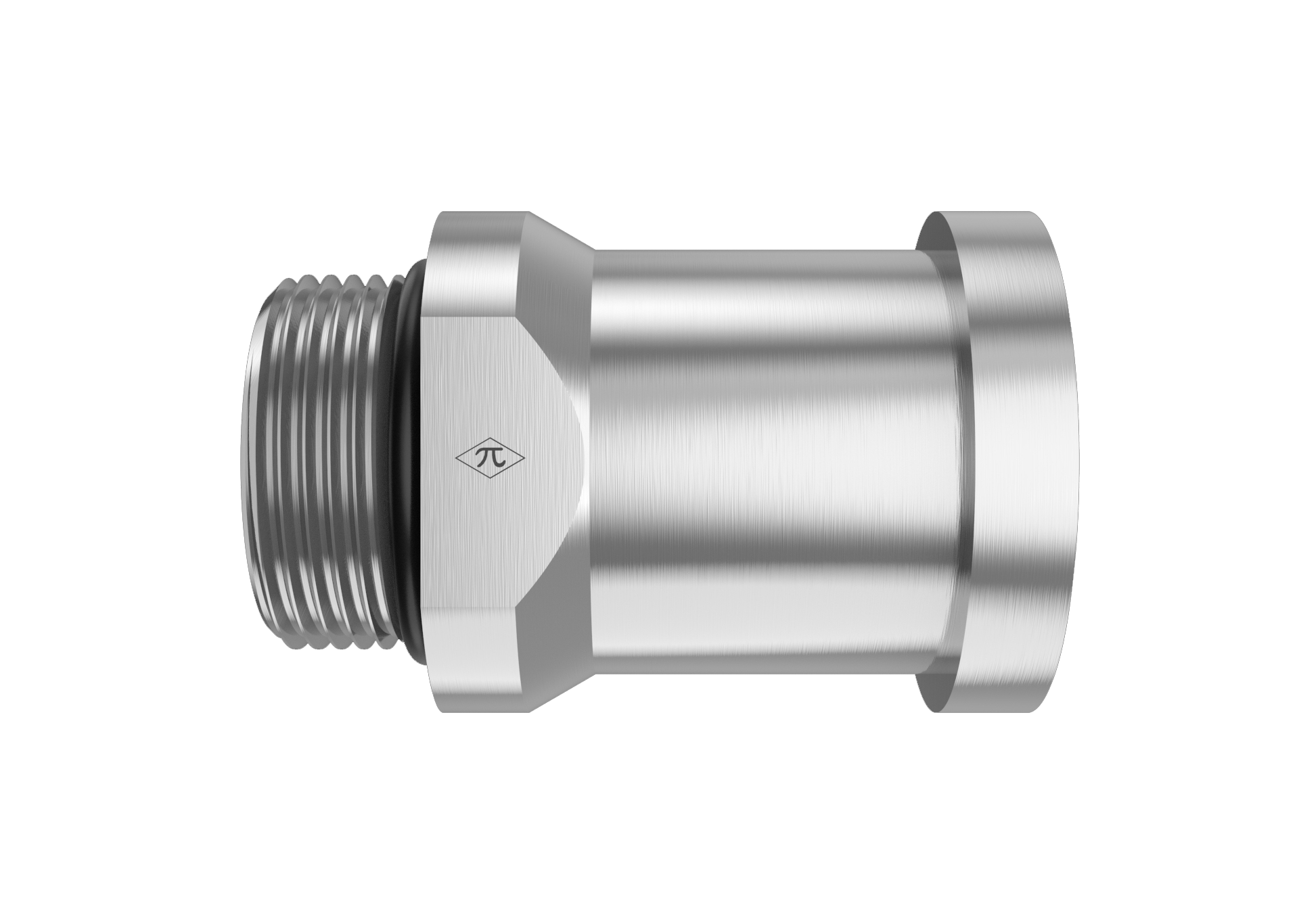

1-7/8-12 Male ORB x 2" Split Flange Head

1710-24-32 is a 1-7/8-12 Male ORB x 2" Split Flange Head in the 1710 Series. For adapting an O-Ring Boss port to an SAE Code 61 Flange port.

  • Steel
  • Trivalent Zinc
  • Male Adapter
$162.31
(0) Write a Review

Product Details

Connection A
TypeMale ORB
Port Size1-7/8-12
StandardSAE J1926
Thread Type1-7/8-12 UN
Connection B
TypeSplit Flange Head
Size2"
StandardSAE J518
Thread Type1-7/8-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Adapter
Weight2.31 lb
Cross References
Parker24-32 F5OHQ1-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
