1800-08-12

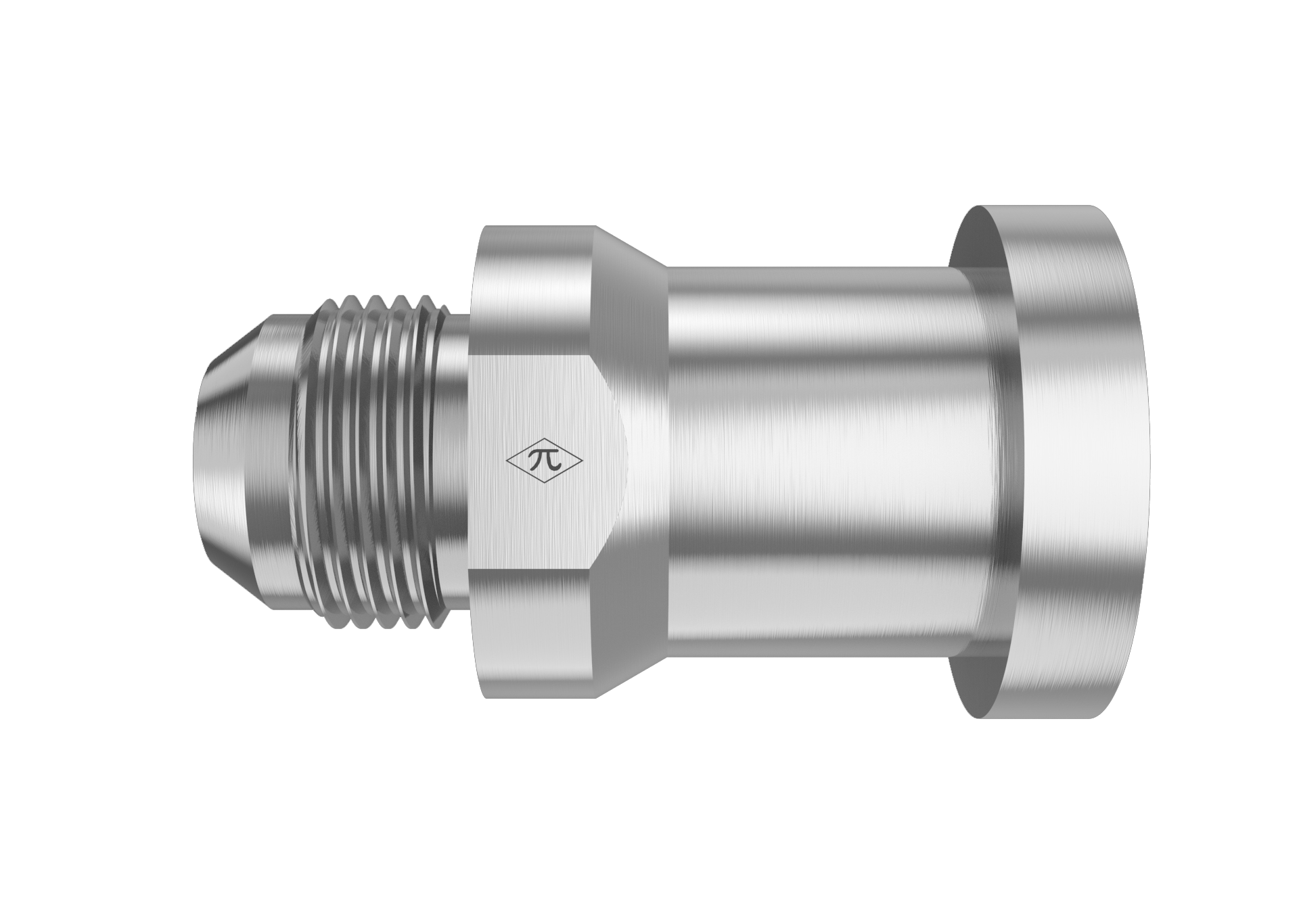

1/2" Male JIC 37° Flare × 3/4" Split Flange Head · Straight Male Adapter

The HGW 1800-08-12 is a straight male adapter joining 1/2" male JIC 37° flare to 3/4" split flange head. Made from trivalent-zinc-plated steel, it uses SAE J514 and SAE J518 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Male Adapter
$36.16
(0) Write a Review
SKU:
1800-08-12

Product Details

Connection A
TypeMale JIC 37° Flare
Tube OD1/2"
StandardSAE J514 · Class 2A Thread
Thread Type3/4-16 UNF
Connection B
TypeSplit Flange Head
Size3/4"
StandardSAE J518
Thread Type3/4-16 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Adapter
Weight0.69 lb
Cross References
AeroquipFF5541-1208S
Parker8-12 XHQ2-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
