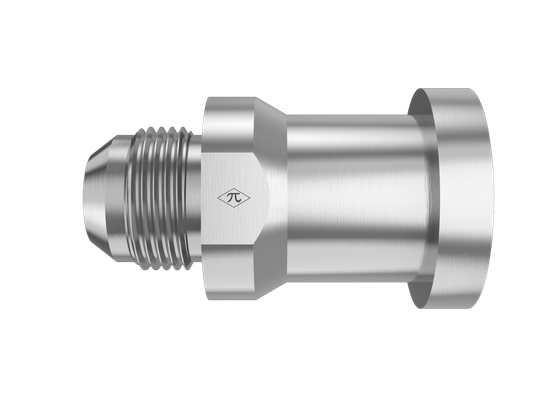

Google Merchant product image

HGW HYDRAULICS

1800-12-12-SS

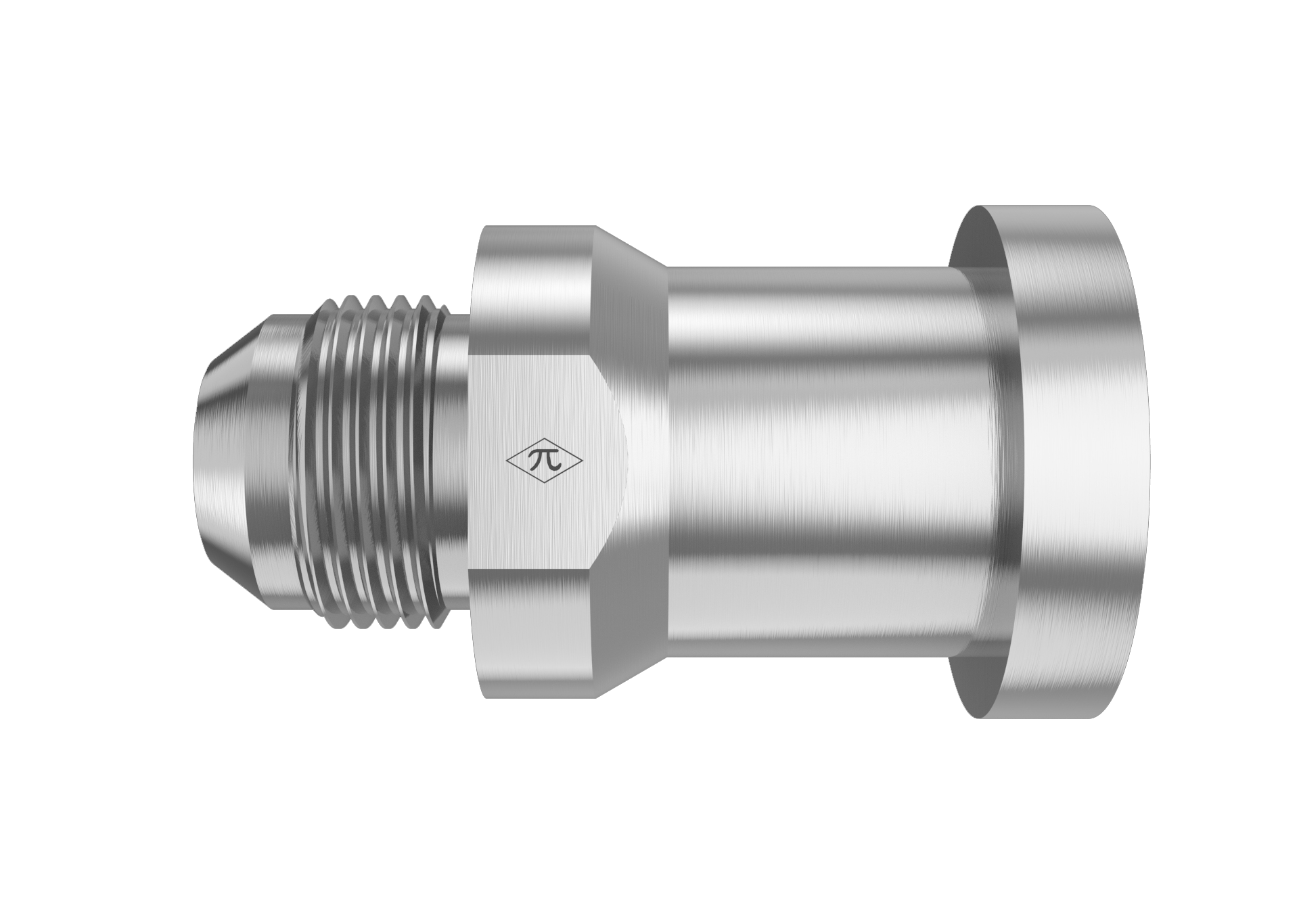

3/4" Male JIC x 3/4" Split Flange Head

1800-12-12-SS is a 3/4" Male JIC x 3/4" Split Flange Head in the 1800 Series. For adapting 37° flared tubes or lines to an SAE Code 62 Flange port.

  • Stainless Steel
  • Passivated
  • Male Adapter
$277.30
(0) Write a Review

Product Details

Connection A
TypeMale JIC
Tube OD3/4"
StandardSAE J514 - Class 2A Thread
Thread Type1-1/16-12 UN
Connection B
TypeSplit Flange Head
Size3/4"
StandardSAE J518
Thread Type1-1/16-12 UN
Connection C
Connection D
Specifications
MaterialStainless Steel
PlatingPassivated
ShapeMale Adapter
Weight0.58 lb
Cross References
Aeroquip259-FF5541-1212
Parker12 XHQ2-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
