HGW HYDRAULICS

1800-16-12

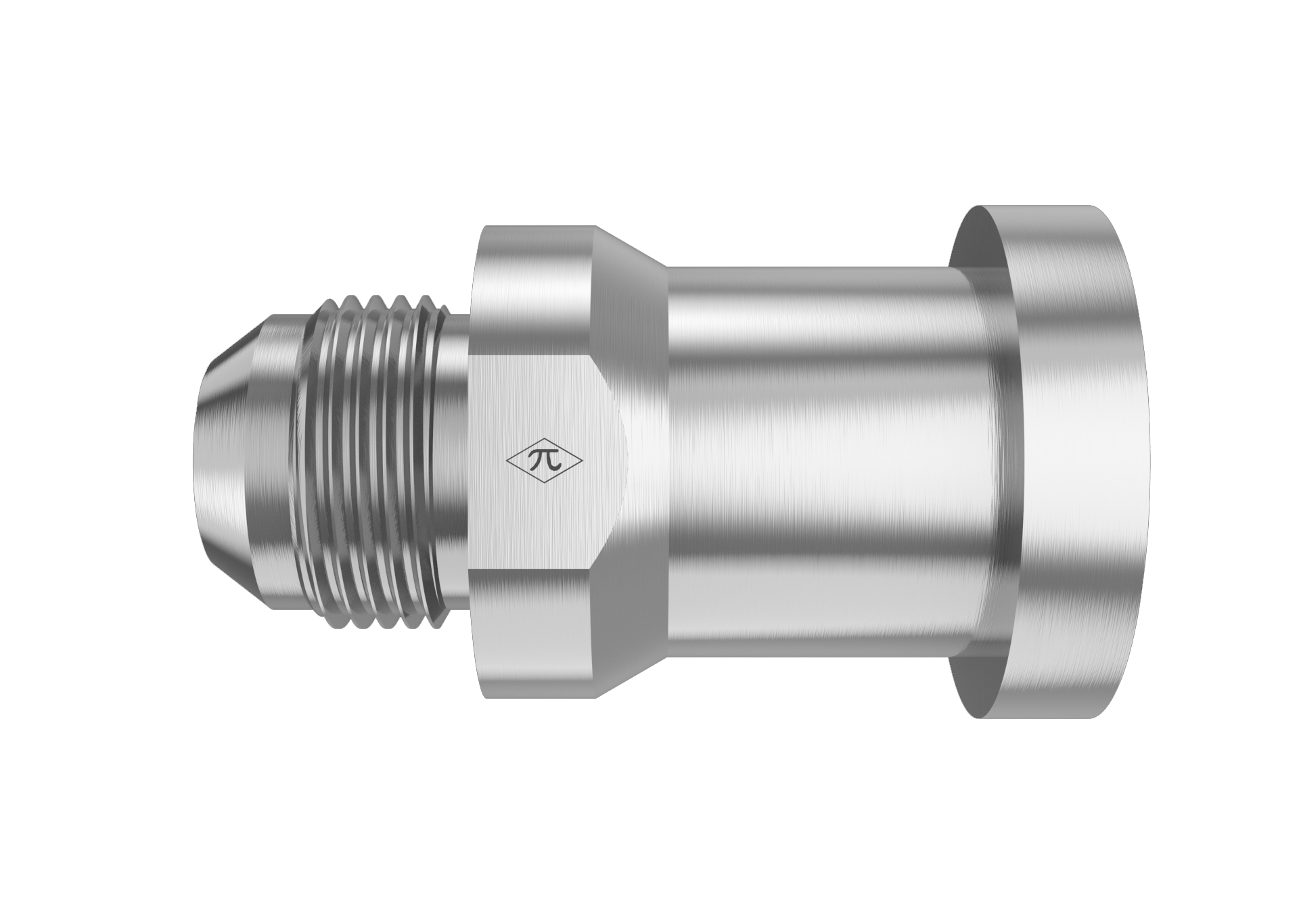

1" Male JIC x 3/4" Split Flange Head

1800-16-12 is a 1" Male JIC x 3/4" Split Flange Head in the 1800 Series. For adapting 37° flared tubes or lines to an SAE Code 62 Flange port.

  • Steel
  • Trivalent Zinc
  • Male Adapter
$20.96
(0) Write a Review

Product Details

Connection A
TypeMale JIC
Tube OD1"
StandardSAE J514 - Class 2A Thread
Thread Type1-5/16-12 UN
Connection B
TypeSplit Flange Head
Size3/4"
StandardSAE J518
Thread Type1-5/16-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Adapter
Weight0.64 lb
Cross References
AeroquipFF5541-1216S
Parker16-12 XHQ2-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
