1800-24-20-SS

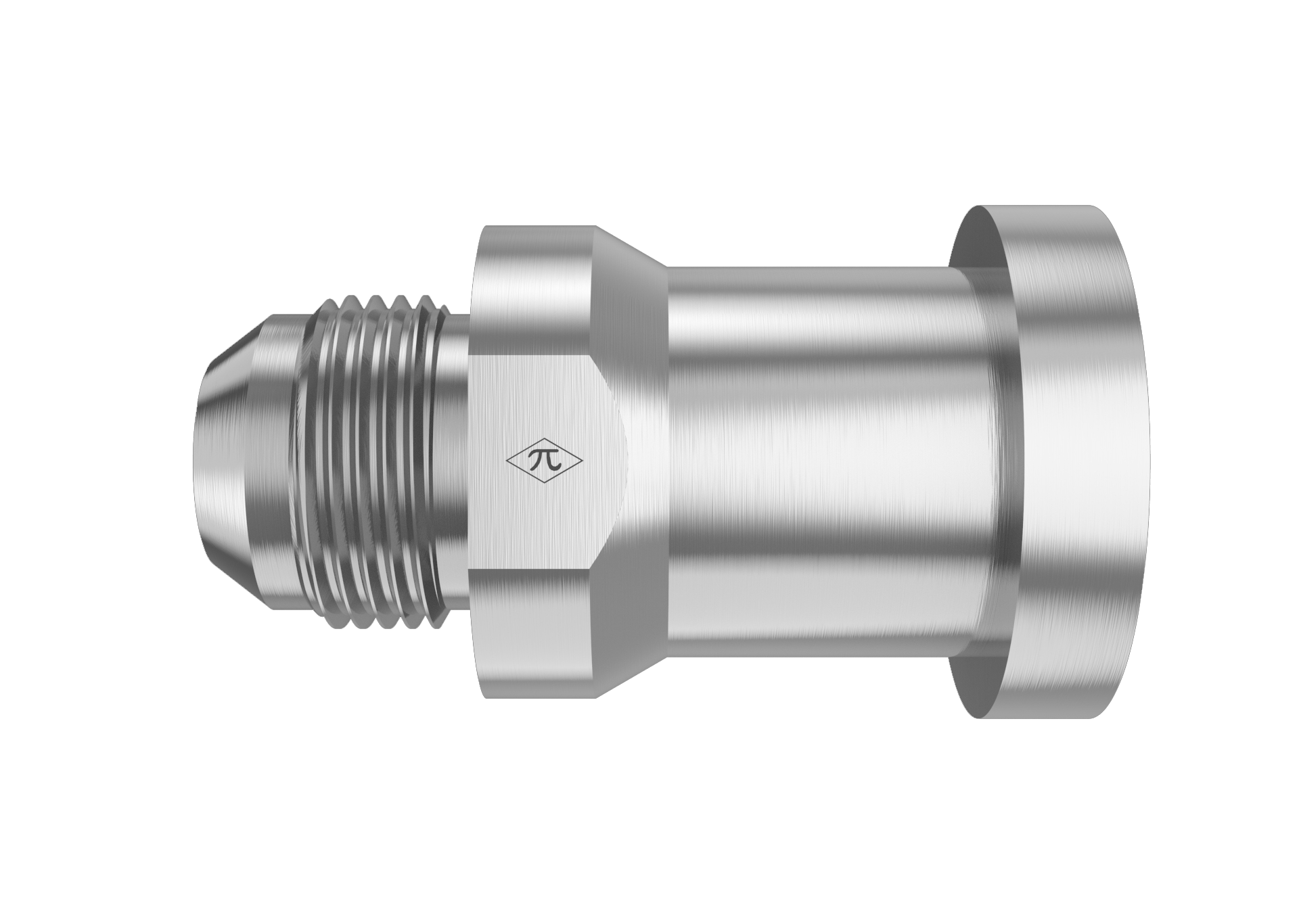

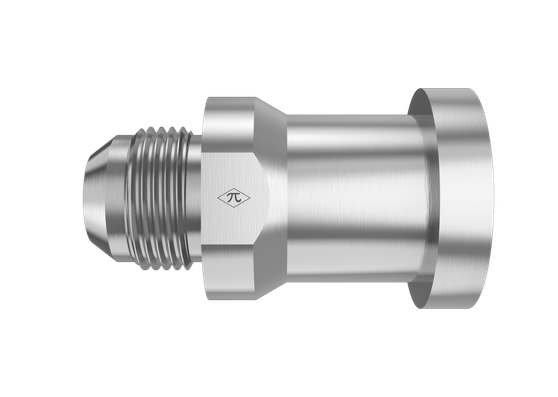

1-1/2" Male JIC 37° Flare × 1-1/4" Split Flange Head · Straight Male Adapter

The HGW 1800-24-20-SS is a straight male adapter joining 1-1/2" male JIC 37° flare to 1-1/4" split flange head. Made from stainless steel, it uses SAE J514 and SAE J518 interfaces for compatible hydraulic applications.

  • Stainless Steel
  • Passivated
  • Male Adapter
$323.31
(0) Write a Review
SKU:
1800-24-20-SS

Product Details

Connection A
TypeMale JIC 37° Flare
Tube OD1-1/2"
StandardSAE J514 · Class 2A Thread
Thread Type1-7/8-12 UN
Connection B
TypeSplit Flange Head
Size1-1/4"
StandardSAE J518
Thread Type1-7/8-12 UN
Connection C
Connection D
Specifications
MaterialStainless Steel
PlatingPassivated
ShapeMale Adapter
Weight1.21 lb
Cross References
Aeroquip259-FF5541-2024
Parker24-20 XHQ2-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
