HGW HYDRAULICS

1800-24-20

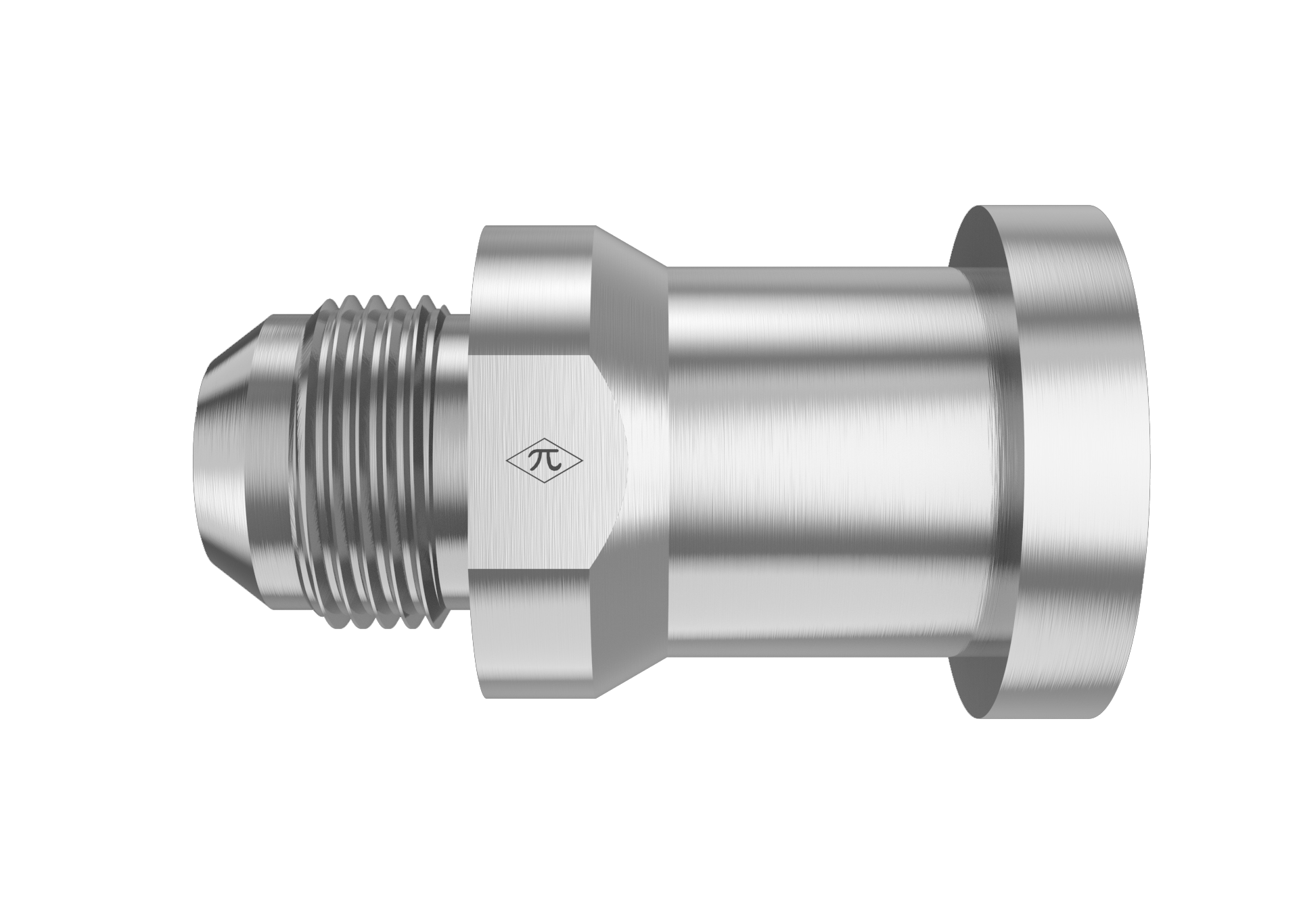

1-1/2" Male JIC x 1-1/4" Split Flange Head

1800-24-20 is a 1-1/2" Male JIC x 1-1/4" Split Flange Head in the 1800 Series. For adapting 37° flared tubes or lines to an SAE Code 62 Flange port.

  • Steel
  • Trivalent Zinc
  • Male Adapter
$31.08
(0) Write a Review

Product Details

Connection A
TypeMale JIC
Tube OD1-1/2"
StandardSAE J514 - Class 2A Thread
Thread Type1-7/8-12 UN
Connection B
TypeSplit Flange Head
Size1-1/4"
StandardSAE J518
Thread Type1-7/8-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Adapter
Weight1.19 lb
Cross References
AeroquipFF5541-2024S
Parker24-20 XHQ2-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
