HGW HYDRAULICS

1800-24-24-SS

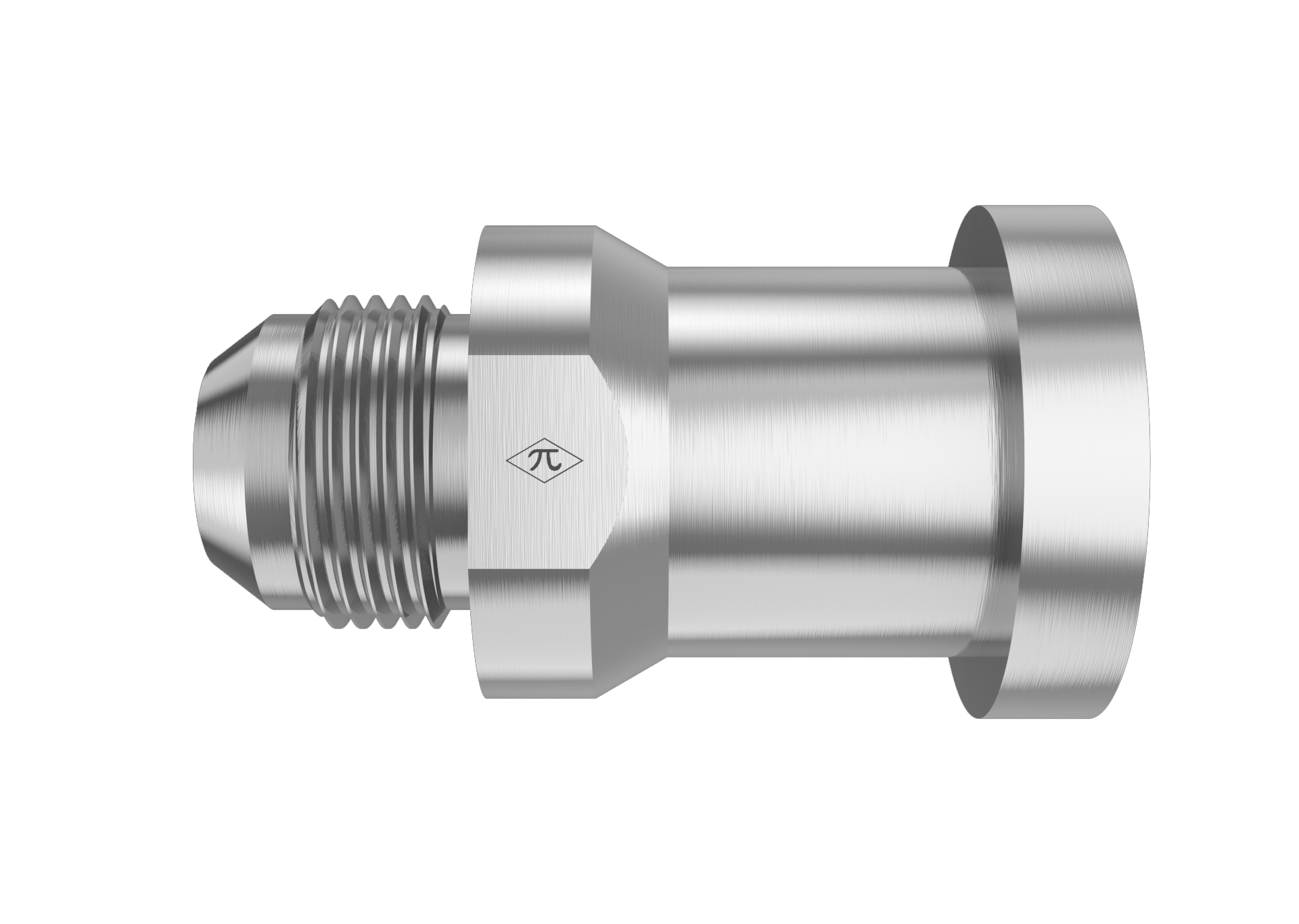

1-1/2" Male JIC x 1-1/2" Split Flange Head

1800-24-24-SS is a 1-1/2" Male JIC x 1-1/2" Split Flange Head in the 1800 Series. For adapting 37° flared tubes or lines to an SAE Code 62 Flange port.

  • Stainless Steel
  • Passivated
  • Male Adapter
$336.48
(0) Write a Review

Product Details

Connection A
TypeMale JIC
Tube OD1-1/2"
StandardSAE J514 - Class 2A Thread
Thread Type1-7/8-12 UN
Connection B
TypeSplit Flange Head
Size1-1/2"
StandardSAE J518
Thread Type1-7/8-12 UN
Connection C
Connection D
Specifications
MaterialStainless Steel
PlatingPassivated
ShapeMale Adapter
Weight1.92 lb
Cross References
Aeroquip259-FF5541-2424
Parker24 XHQ2-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
