HGW HYDRAULICS

1800-24-24

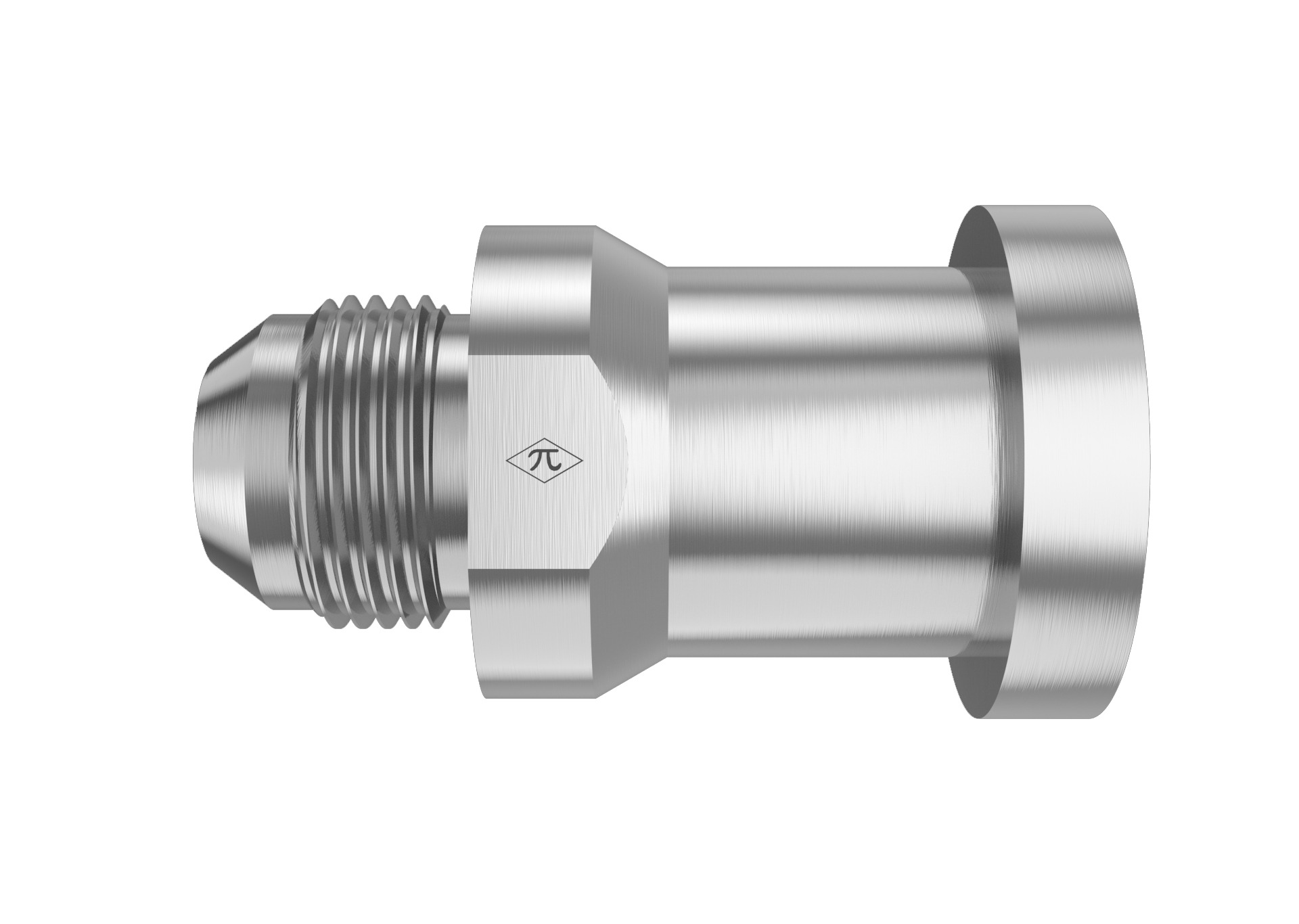

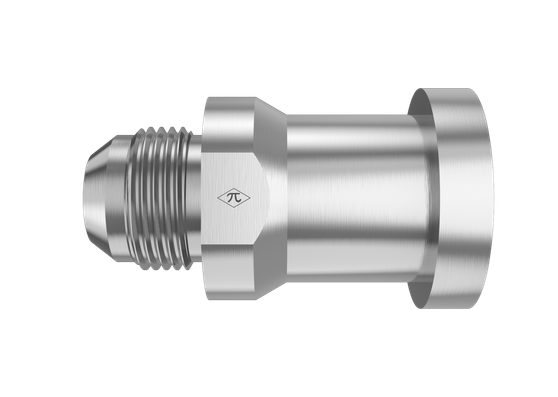

1-1/2" Male JIC 37° Flare × 1-1/2" Split Flange Head · Straight Male Adapter

The HGW 1800-24-24 is a straight male adapter joining 1-1/2" male JIC 37° flare to 1-1/2" split flange head. Made from trivalent-zinc-plated steel, it uses SAE J514 and SAE J518 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Male Adapter
$38.84
(0) Write a Review
SKU:
1800-24-24

Product Details

Connection A
TypeMale JIC 37° Flare
Tube OD1-1/2"
StandardSAE J514 · Class 2A Thread
Thread Type1-7/8-12 UN
Connection B
TypeSplit Flange Head
Size1-1/2"
StandardSAE J518
Thread Type1-7/8-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Adapter
Weight1.91 lb
Cross References
AeroquipFF5541-2424S
Parker24 XHQ2-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
