HGW HYDRAULICS

1803-08-08

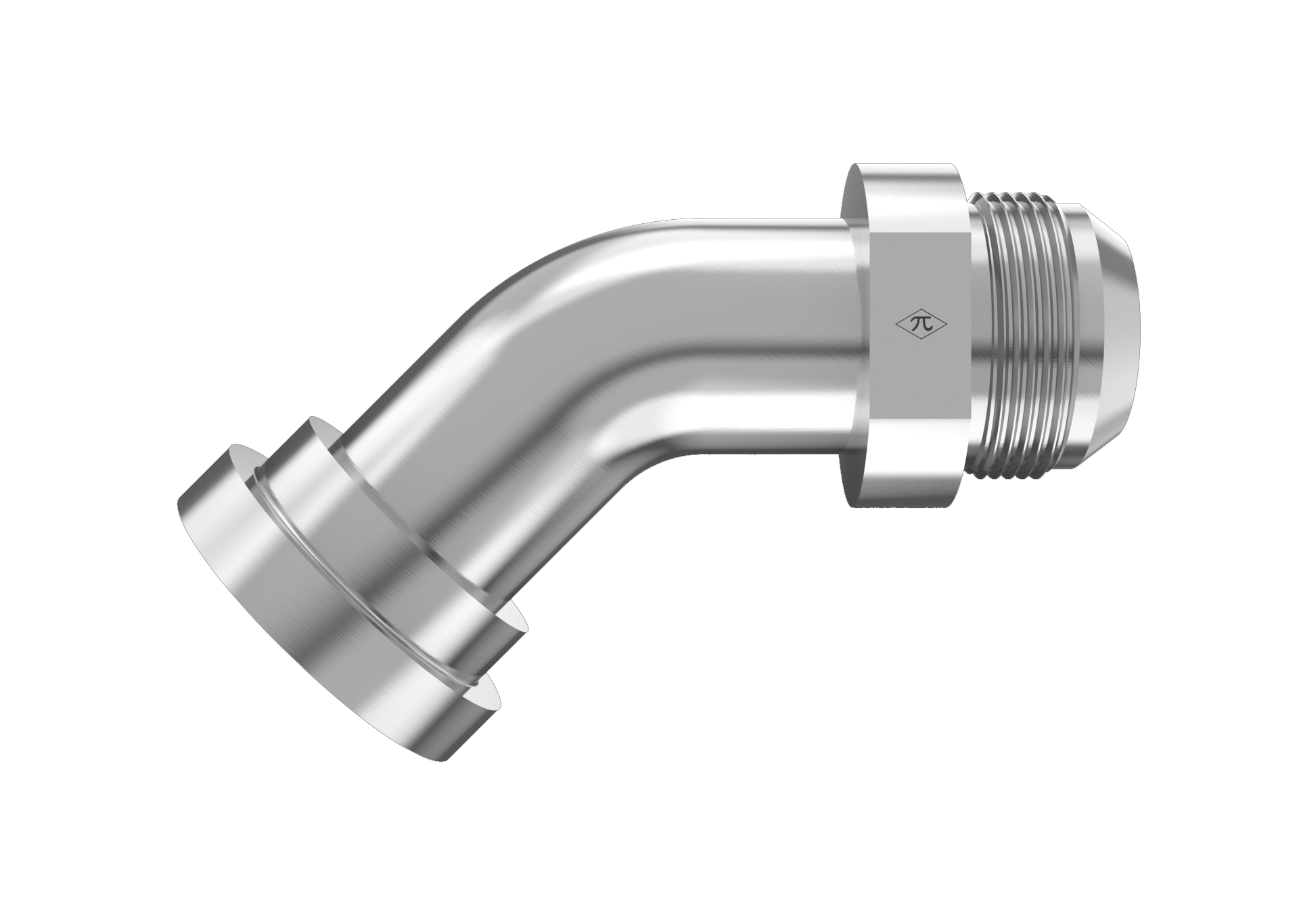

1/2" Male JIC x 1/2" Split Flange Head

1803-08-08 is a 1/2" Male JIC x 1/2" Split Flange Head in the 1803 Series. For adapting 37° flared tubes or lines to an SAE Code 62 Flange port at a 45° swept angle to reduce flow restriction and improve hose routing.

  • Steel
  • Trivalent Zinc
  • Male Swept Elbow
$25.07
(0) Write a Review

Product Details

Connection A
TypeMale JIC
Tube OD1/2"
StandardSAE J514 - Class 2A Thread
Thread Type3/4-16 UNF
Connection B
TypeSplit Flange Head
Size1/2"
StandardSAE J518
Thread Type3/4-16 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Swept Elbow
Weight0.33 lb
Cross References
AeroquipFF5539-0808S
Parker6FH3-8-8

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
