1803-24-24-FG

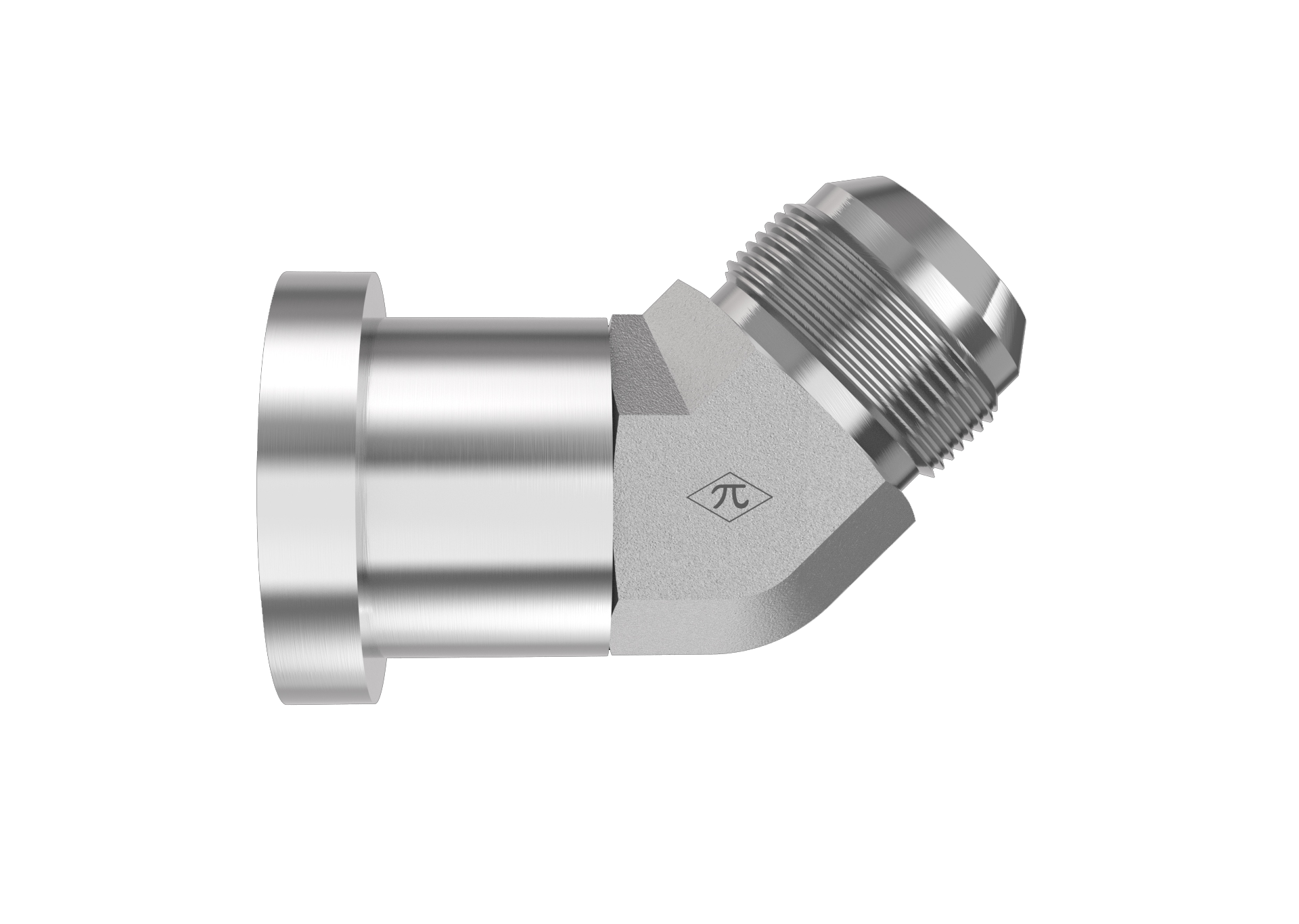

1-1/2" Male JIC x 1-1/2" Split Flange Head

1803-24-24-FG is a 1-1/2" Male JIC x 1-1/2" Split Flange Head in the 1803-FG Series. SAE J514 37° Flare Code 62 Flange 45° Forged Elbow.

  • Steel
  • Trivalent Zinc
$80.63
(0) Write a Review

Product Details

Connection A
TypeMale JIC
Tube OD1-1/2"
StandardSAE J514
Connection B
TypeSplit Flange Head
Size1-1/2"
StandardSAE J518
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
