HGW HYDRAULICS

1803-24-24

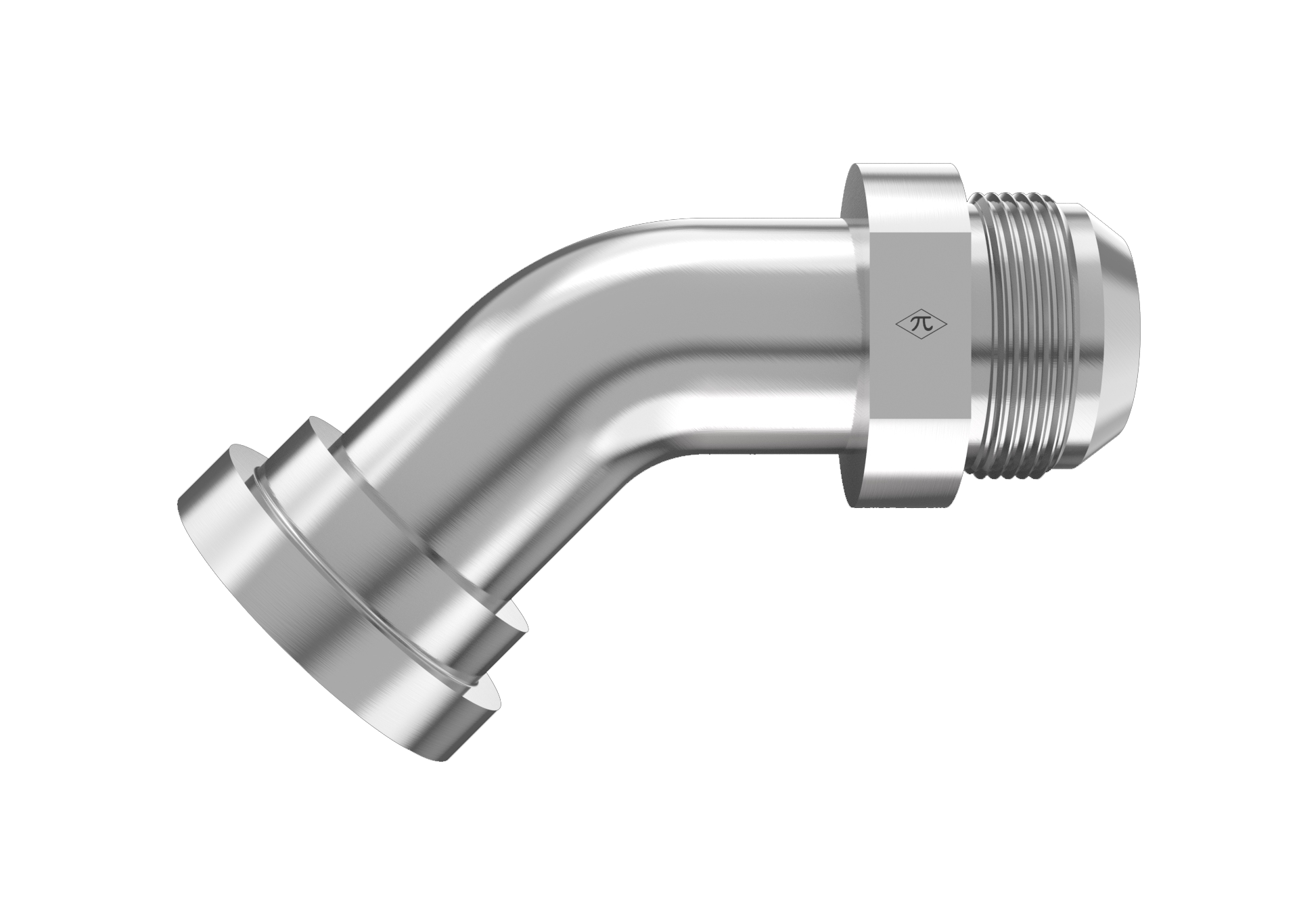

1-1/2" Male JIC 37° Flare × 1-1/2" Split Flange Head · Male Swept Elbow

The HGW 1803-24-24 is a male swept elbow joining 1-1/2" male JIC 37° flare to 1-1/2" split flange head. Made from trivalent-zinc-plated steel, it uses SAE J514 and SAE J518 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Male Swept Elbow
$62.30
(0) Write a Review
SKU:
1803-24-24

Product Details

Connection A
TypeMale JIC 37° Flare
Tube OD1-1/2"
StandardSAE J514 · Class 2A Thread
Thread Type1-7/8-12 UN
Connection B
TypeSplit Flange Head
Size1-1/2"
StandardSAE J518
Thread Type1-7/8-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Swept Elbow
Weight2.45 lb
Cross References
AeroquipFF5539-2424S
Parker6FH3-24-24

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
