1804-10-10

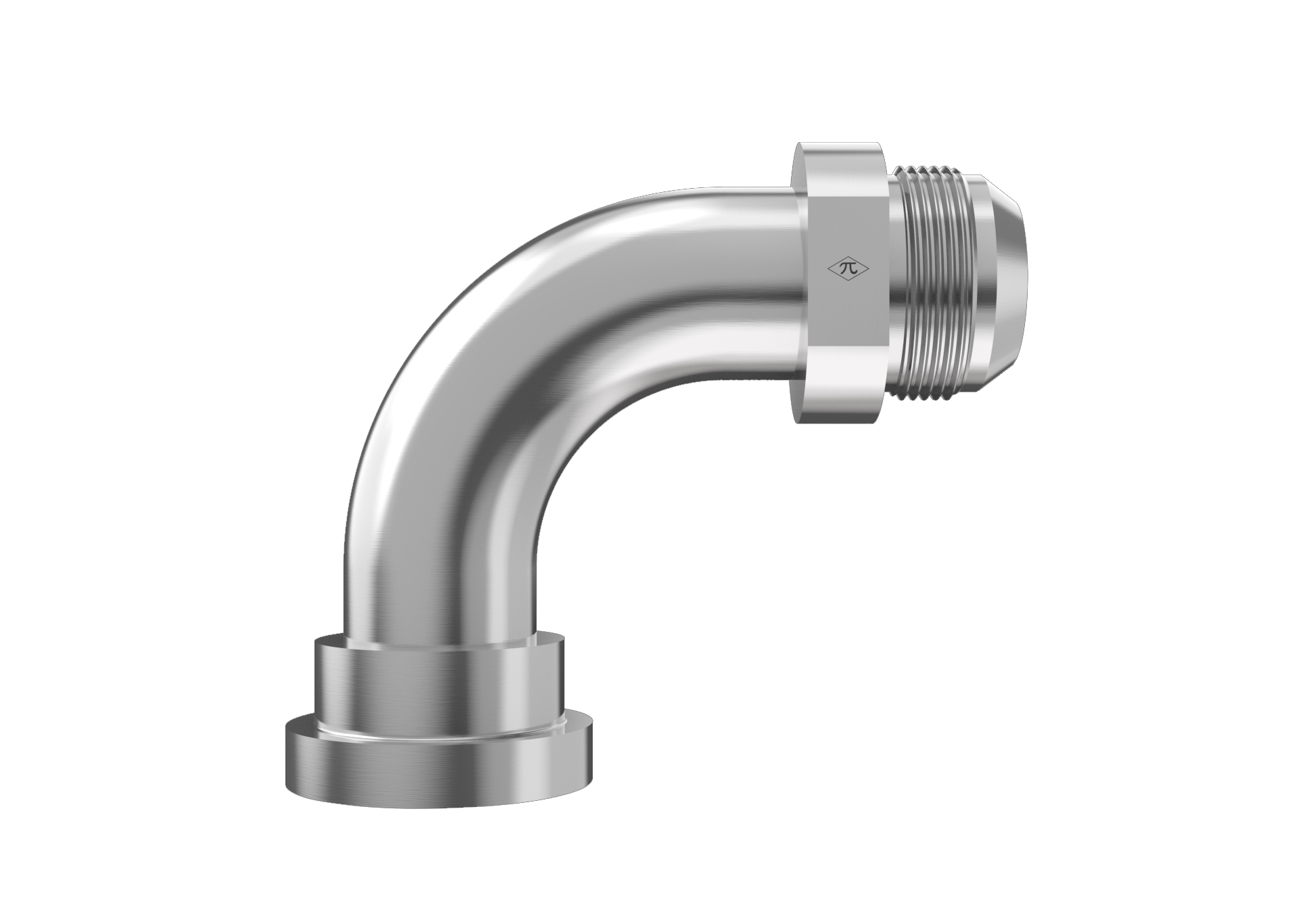

5/8" Male JIC x 5/8" Split Flange Head

1804-10-10 is a 5/8" Male JIC x 5/8" Split Flange Head in the 1804 Series. For adapting 37° flared tubes or lines to an SAE Code 62 Flange port at a 90° swept angle to reduce flow restriction and improve hose routing.

  • Steel
  • Trivalent Zinc
$53.37
(0) Write a Review

Product Details

Connection A
TypeMale JIC
Tube OD5/8"
StandardSAE J514
Connection B
TypeSplit Flange Head
Size5/8"
StandardSAE J518
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
