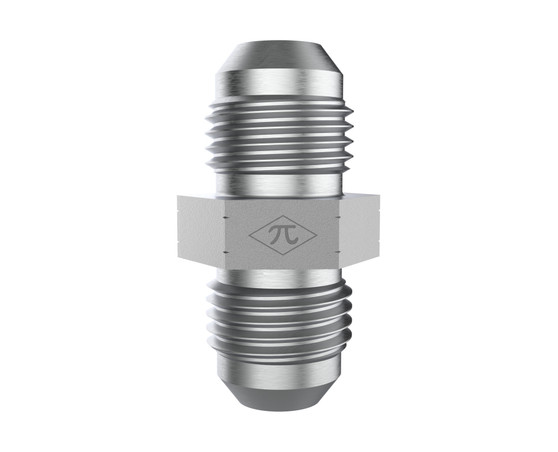

Google Merchant product image

HGW HYDRAULICS

2403-16-10

1" Male JIC 37° Flare × 5/8" Male JIC 37° Flare · Straight Union

The HGW 2403-16-10 is a straight union joining 1" male JIC 37° flare to 5/8" male JIC 37° flare. Made from trivalent-zinc-plated steel, it uses SAE J514 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Union
$7.40
(0) Write a Review
SKU:
2403-16-10

Product Details

Connection A
TypeMale JIC 37° Flare
Tube Size1"
StandardSAE J514 · Class 2A Thread
Thread1-5/16-12
Connection B
TypeMale JIC 37° Flare
Tube Size5/8"
StandardSAE J514 · Class 2A Thread
Thread1-5/16-12
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeUnion
Weight0.38 lb
Cross References
Aeroquip2027-16-10S
Parker16-10 HTX-S
SAE Ref.SAE J514 16-10 070101C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
