HGW HYDRAULICS

2403-24-08-SS

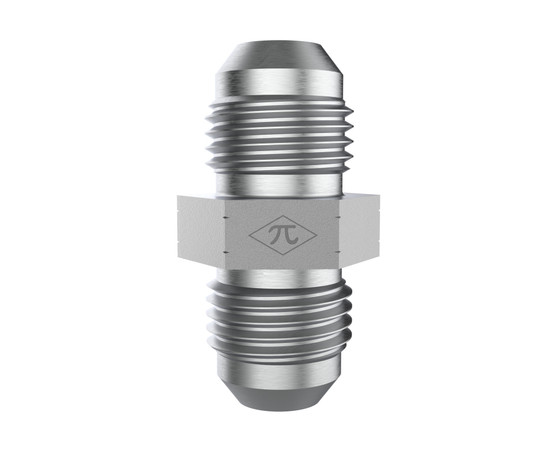

1-1/2" Male JIC x 1/2" Male JIC

2403-24-08-SS is a 1-1/2" Male JIC x 1/2" Male JIC in the 2403 Series. For connecting two 37° flared tubes or lines in a straight configuration.

  • Stainless Steel
  • Passivated
  • Union
$171.65
(0) Write a Review
SKU:
2403-24-08-SS

Product Details

Connection A
TypeMale JIC
Tube OD1-1/2"
StandardSAE J514 - Class 2A Thread
Thread Type1-7/8-12 UN
Connection B
TypeMale JIC
Tube OD1/2"
StandardSAE J514 - Class 2A Thread
Thread Type1-7/8-12 UN
Connection C
Connection D
Specifications
MaterialStainless Steel
PlatingPassivated
ShapeUnion
Weight0.88 lb
Cross References
Aeroquip259-2027-24-8
Parker24-8 HTX-SS
SAE Ref.SAE J514 24-8 070101S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
