HGW HYDRAULICS

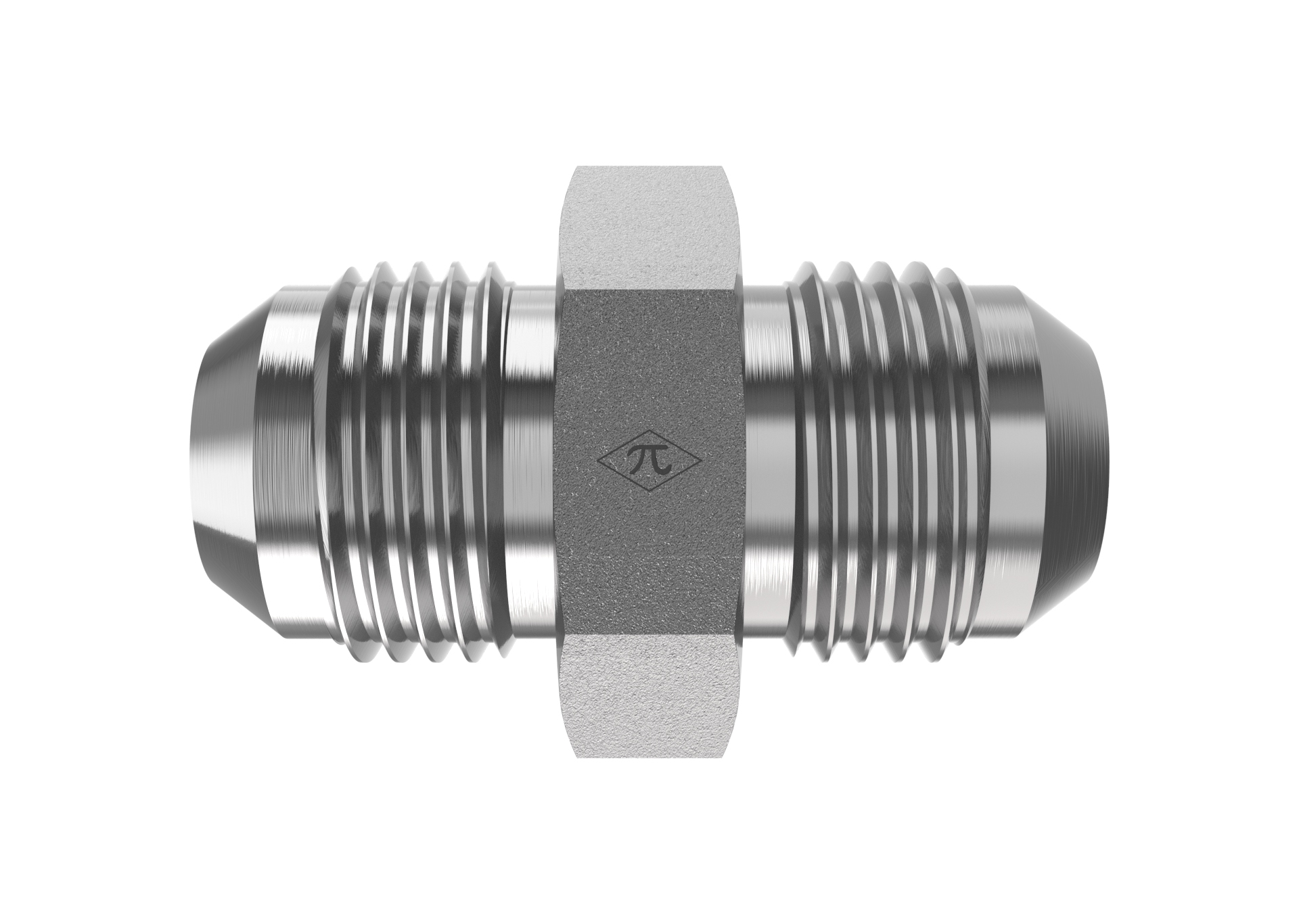

2403-LH-10-06

5/8" Male JIC x 3/8" Male JIC

2403-LH-10-06 is a 5/8" Male JIC x 3/8" Male JIC in the 2403-LH Series. For connecting two 37° flared tubes or lines with larger hex body for easier wrenching.

  • Steel
  • Trivalent Zinc
  • Union
$9.48
(0) Write a Review
SKU:
2403-LH-10-06

Product Details

Connection A
TypeMale JIC
Tube OD5/8"
StandardSAE J514 - Class 2A Thread
Connection B
TypeMale JIC
Tube OD3/8"
StandardSAE J514 - Class 2A Thread
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeUnion
Weight0.18 lb
Cross References
Aeroquip202712-10-6S
Parker10-6 LHTX-S
SAE Ref.SAE J514 10-6 070119C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
