HGW HYDRAULICS

2403-LH-24-20

1-1/2" Male JIC x 1-1/4" Male JIC

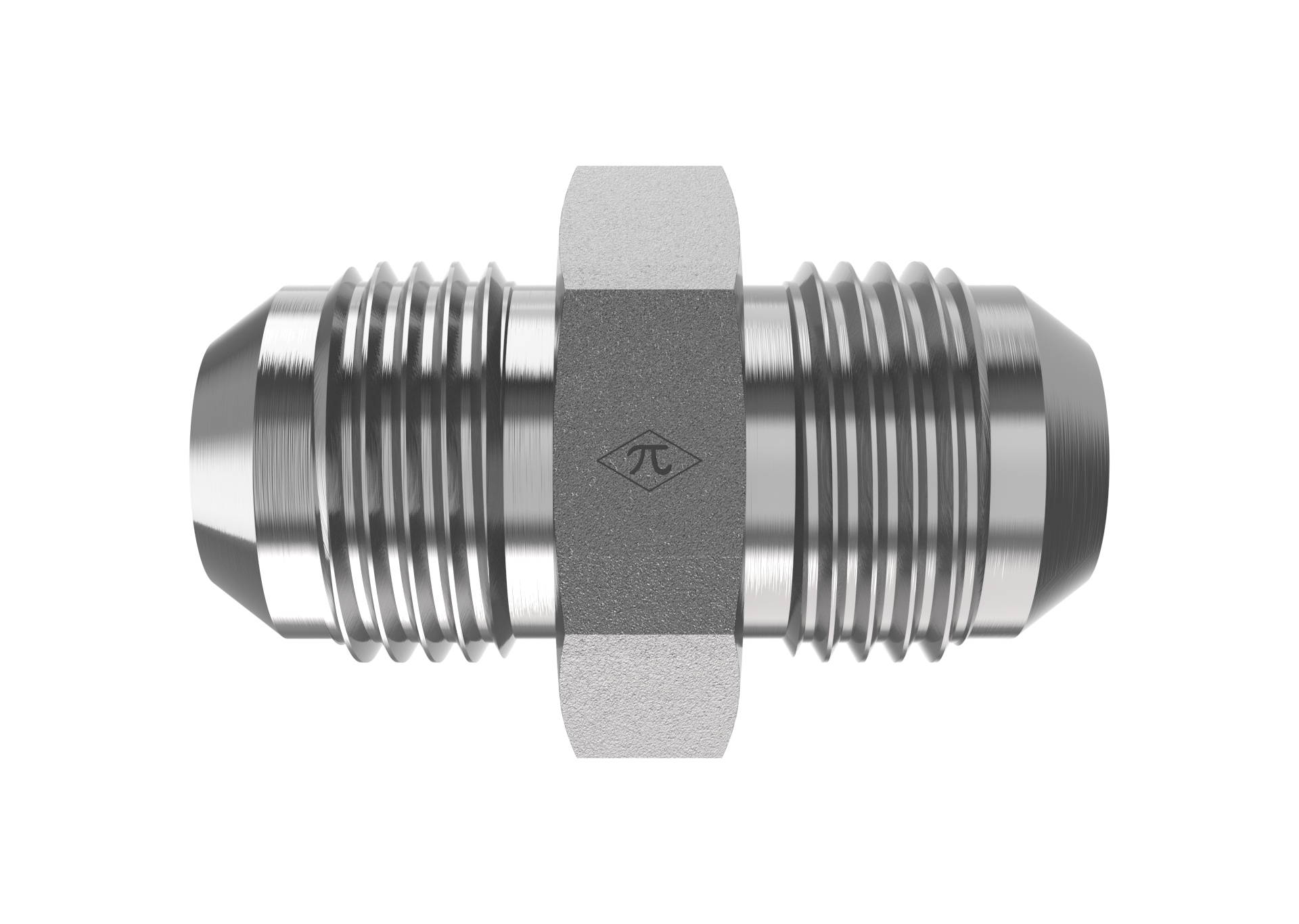

2403-LH-24-20 is a 1-1/2" Male JIC x 1-1/4" Male JIC in the 2403-LH Series. For connecting two 37° flared tubes or lines with larger hex body for easier wrenching.

  • Steel
  • Trivalent Zinc
  • Union
$132.90
(0) Write a Review
SKU:
2403-LH-24-20

Product Details

Connection A
TypeMale JIC
Tube OD1-1/2"
StandardSAE J514 - Class 2A Thread
Connection B
TypeMale JIC
Tube OD1-1/4"
StandardSAE J514 - Class 2A Thread
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeUnion
Weight0.99 lb
Cross References
Aeroquip202712-24-20S
Parker24-20 LHTX-S
SAE Ref.SAE J514 24-20 070119C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
