2404-L-05-04

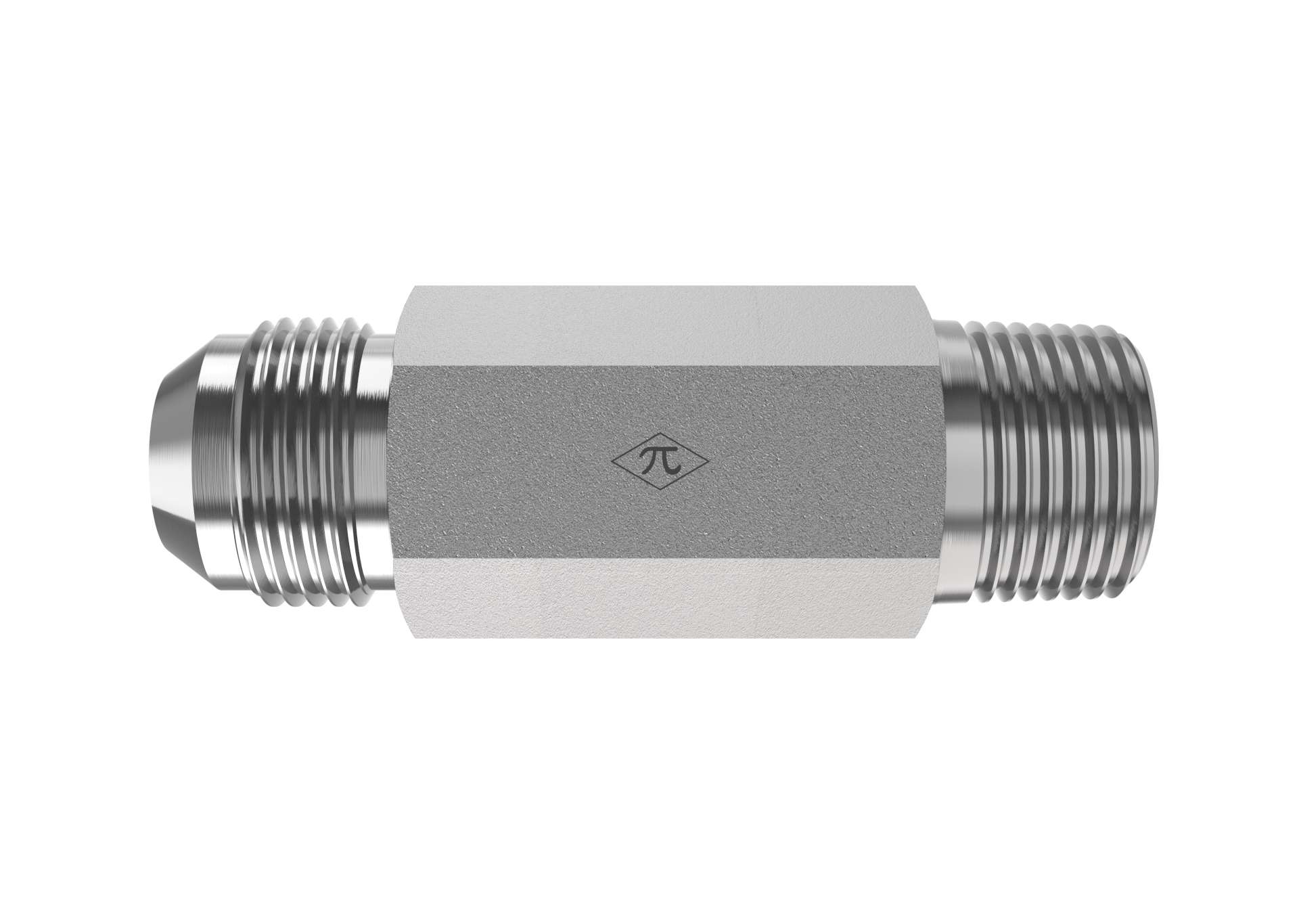

5/16" Male JIC x 1/4" Male NPTF 30°

2404-L-05-04 is a 5/16" Male JIC x 1/4" Male NPTF 30° in the 2404-L Series. For long connections of 37° flared tubes or lines to pipe without requiring pipe sealant.

  • Steel
  • Trivalent Zinc
  • Connector
$5.42
(0) Write a Review
SKU:
2404-L-05-04

Product Details

Connection A
TypeMale JIC
Tube OD5/16"
StandardSAE J514 - Class 2A Thread
Thread Type1/2-20 UNF
Connection B
TypeMale NPTF 30°
Pipe Size1/4"
StandardSAE J476
Thread Type1/2-20 UNF
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeConnector
Weight0.12 lb
Cross References
Aeroquip202113-4-5S
Parker5-4 FFTX-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
