HGW HYDRAULICS

2404-LL-04-04

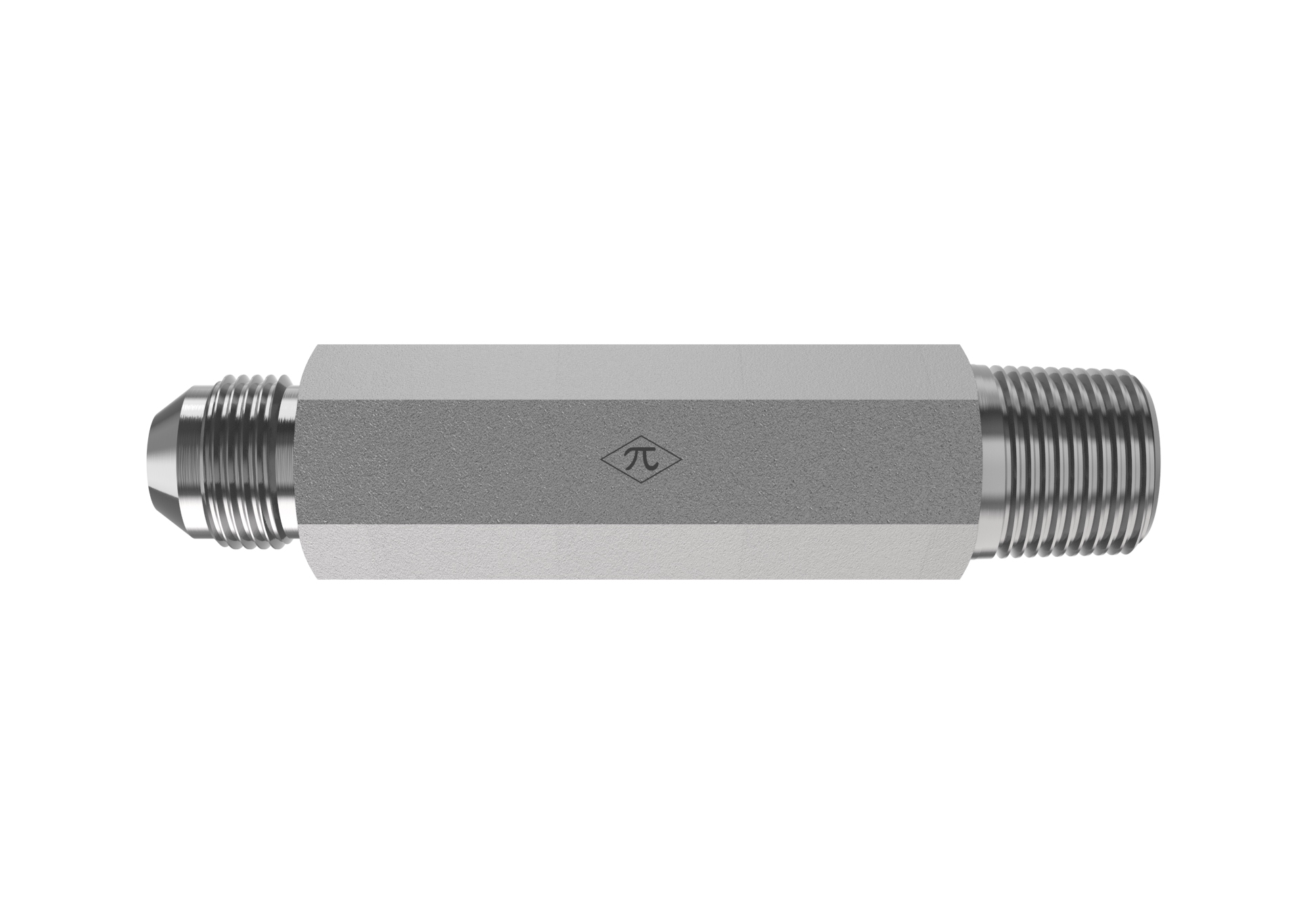

1/4" Male JIC 37° Flare × 1/4" Male NPTF · Double-Long Straight Male Connector

The HGW 2404-LL-04-04 is a double-long straight male connector joining 1/4" male JIC 37° flare to 1/4" male NPTF. Made from trivalent-zinc-plated steel, it uses SAE J514 and SAE J476 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Double-Long Straight Male Connector
$5.15
(0) Write a Review
SKU:
2404-LL-04-04

Product Details

Connection A
TypeMale JIC 37° Flare
Tube Size1/4"
StandardSAE J514 · Class 2A Thread
Thread7/16-20
Connection B
TypeMale NPTF
Pipe Size1/4"
StandardSAE J476
Thread1/4-18
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeDouble-Long Straight Male Connector
Weight0.17 lb
Cross References
Aeroquip202114-4-4S
Parker4-4 FFFTX-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
