HGW HYDRAULICS

2405-32-32-SS

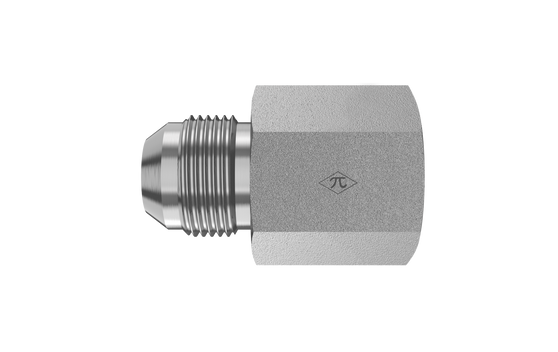

2" Male JIC 37° Flare × 2" Female NPTF · Straight Female Connector

The HGW 2405-32-32-SS is a straight female connector joining 2" male JIC 37° flare to 2" female NPTF. Made from stainless steel, it uses SAE J514 and SAE J476 interfaces for compatible hydraulic applications.

  • Stainless Steel
  • Passivated
  • Straight Female Connector
$263.59
(0) Write a Review
SKU:
2405-32-32-SS

Product Details

Connection A
TypeMale JIC 37° Flare
Tube Size2"
StandardSAE J514 · Class 2A Thread
Thread2-1/2-12
Connection B
TypeFemale NPTF
Pipe Size2"
StandardSAE J476
Thread2-11-1/2
Connection C
Connection D
Specifications
MaterialStainless Steel
PlatingPassivated
ShapeStraight Female Connector
Weight2.47 lb
Cross References
Aeroquip259-2022-32-32
Parker32 GTX-SS
SAE Ref.SAE J514 32-32 070103S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
