HGW HYDRAULICS

2406-03-04

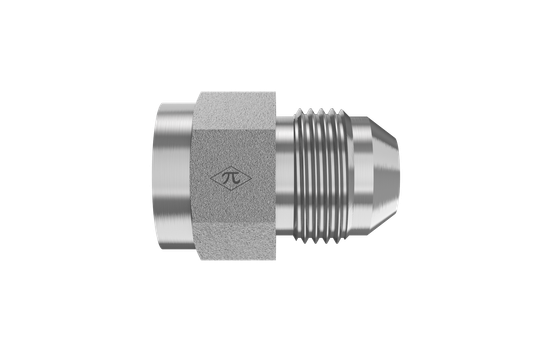

3/16" Female JIC 37° Swivel × 1/4" Male JIC 37° Flare · Straight Swivel Reducer

The HGW 2406-03-04 is a straight swivel reducer joining 3/16" female JIC 37° swivel to 1/4" male JIC 37° flare. Made from trivalent-zinc-plated steel, it uses SAE J514 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Straight Swivel Reducer
$3.16
(0) Write a Review
SKU:
2406-03-04

Product Details

Connection A
TypeFemale JIC 37° Swivel
Tube Size3/16"
StandardSAE J514 · Class 2B Thread
Thread3/8-24
Connection B
TypeMale JIC 37° Flare
Tube Size1/4"
StandardSAE J514 · Class 2A Thread
Thread7/16-20
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeStraight Swivel Reducer
Weight0.03 lb
Cross References
Aeroquip2215-3-4S
Parker3-4 TRTXN-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
