HGW HYDRAULICS

2406-04-02

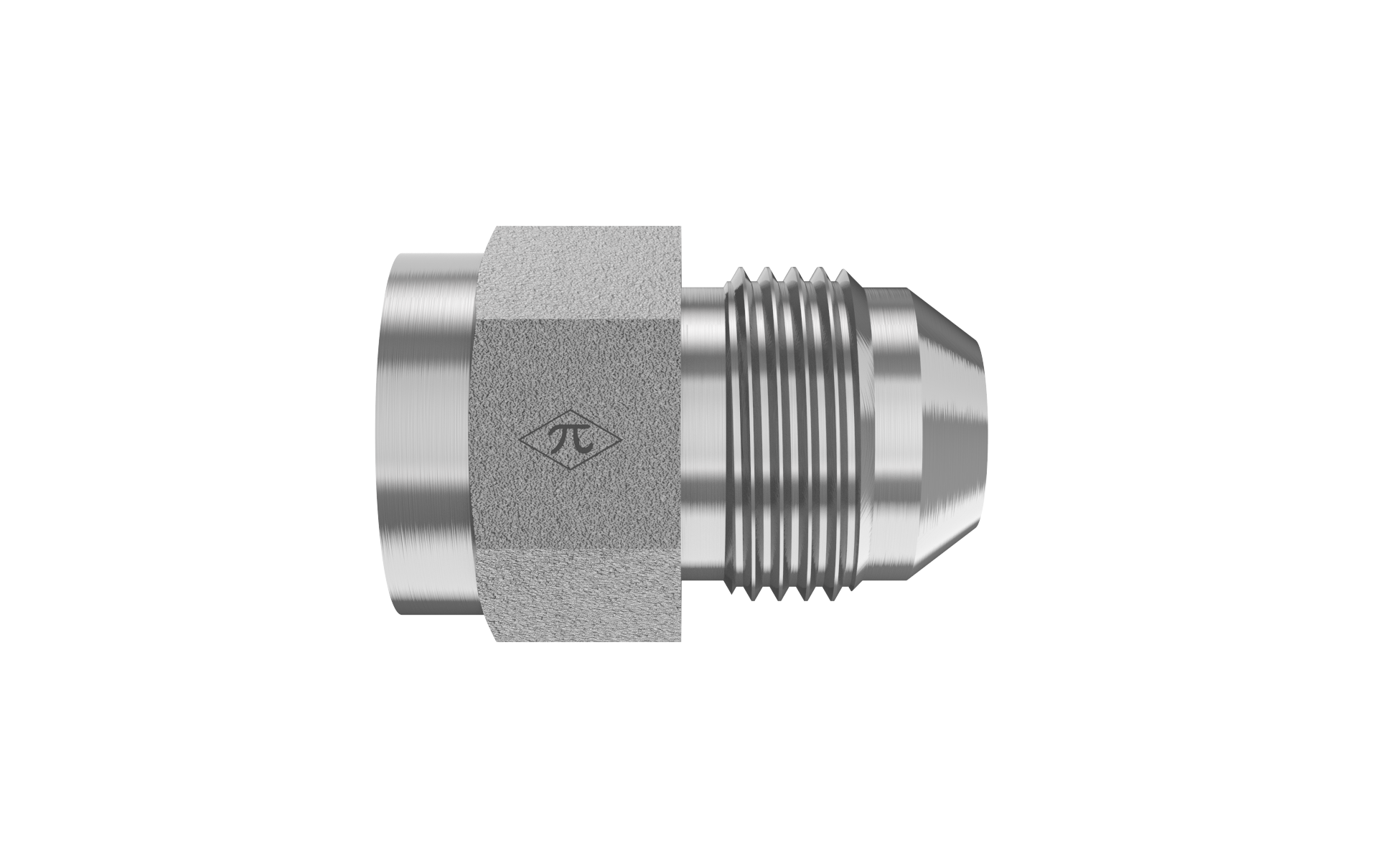

1/4" Female JIC 37° Swivel × 1/8" Male JIC 37° Flare · Straight Swivel Reducer

The HGW 2406-04-02 is a straight swivel reducer joining 1/4" female JIC 37° swivel to 1/8" male JIC 37° flare. Made from trivalent-zinc-plated steel, it uses SAE J514 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Straight Swivel Reducer
$3.47
(0) Write a Review
SKU:
2406-04-02

Product Details

Connection A
TypeFemale JIC 37° Swivel
Tube Size1/4"
StandardSAE J514 · Class 2B Thread
Thread7/16-20
Connection B
TypeMale JIC 37° Flare
Tube Size1/8"
StandardSAE J514 · Class 2A Thread
Thread5/16-24
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeStraight Swivel Reducer
Weight0.04 lb
Cross References
Aeroquip2215-4-2S
Parker4-2 TRTXN-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
