HGW HYDRAULICS

2406-04-08-SS

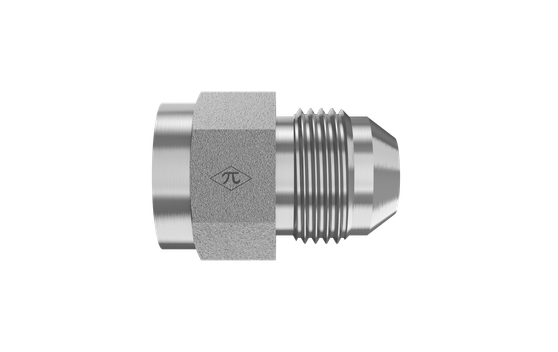

1/4" Female JIC 37° Swivel × 1/2" Male JIC 37° Flare · Straight Swivel Reducer

The HGW 2406-04-08-SS is a straight swivel reducer joining 1/4" female JIC 37° swivel to 1/2" male JIC 37° flare. Made from stainless steel, it uses SAE J514 interfaces for compatible hydraulic applications.

  • Stainless Steel
  • Straight Swivel Reducer
$104.17
(0) Write a Review
SKU:
2406-04-08-SS

Product Details

Connection A
TypeFemale JIC 37° Swivel
Tube Size1/4"
StandardSAE J514 · Class 2B Thread
Thread7/16-20
Connection B
TypeMale JIC 37° Flare
Tube Size1/2"
StandardSAE J514 · Class 2A Thread
Thread3/4-16
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeStraight Swivel Reducer
Weight0.15 lb
Cross References
Aeroquip259-2215-4-8
Parker4-8 TRTXN-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
