HGW HYDRAULICS

2406-12-04

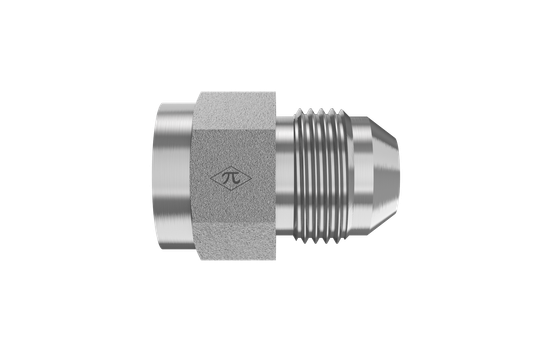

3/4" Female JIC Swivel x 1/4" Male JIC

2406-12-04 is a 3/4" Female JIC Swivel x 1/4" Male JIC in the 2406 Series. For connecting two 37° flared tubes or lines of different sizes in a straight configuration; the swivel end allows the joint to be tightened without twisting the line.

  • Steel
  • Trivalent Zinc
  • Reducer
$5.23
(0) Write a Review
SKU:
2406-12-04

Product Details

Connection A
TypeFemale JIC Swivel
Tube OD3/4"
StandardSAE J514 - Class 2B Thread
Thread Type1-1/16-12 UN
Connection B
TypeMale JIC
Tube OD1/4"
StandardSAE J514 - Class 2A Thread
Thread Type1-1/16-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeReducer
Weight0.21 lb
Cross References
Aeroquip2215-12-4S
Parker12-4 TRTXN-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
