HGW HYDRAULICS

2406-12-06-SS

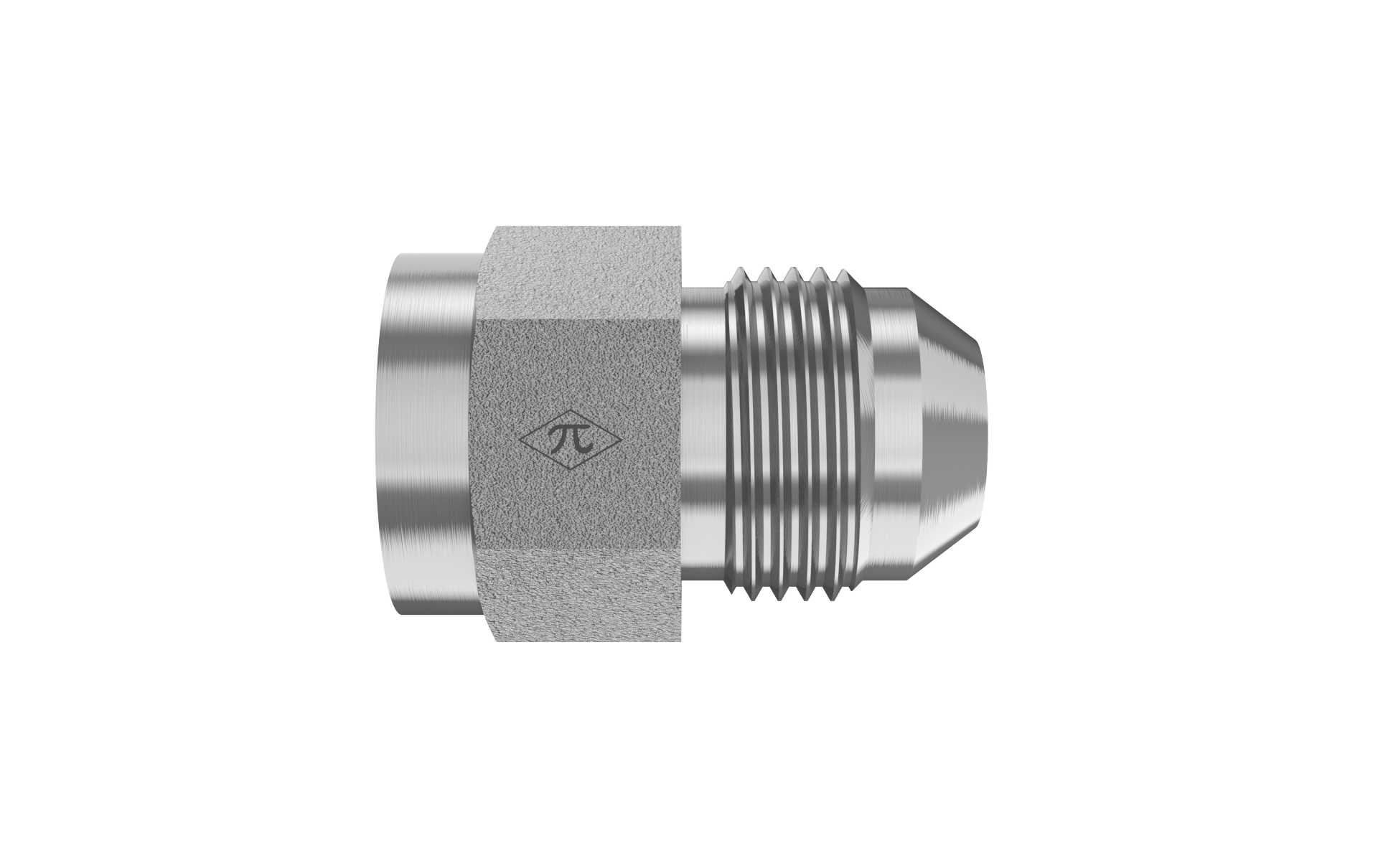

3/4" Female JIC Swivel x 3/8" Male JIC

2406-12-06-SS is a 3/4" Female JIC Swivel x 3/8" Male JIC in the 2406 Series. For connecting two 37° flared tubes or lines of different sizes in a straight configuration; the swivel end allows the joint to be tightened without twisting the line.

  • Stainless Steel
  • Reducer
  • None
$51.23
(0) Write a Review
SKU:
2406-12-06-SS

Product Details

Connection A
TypeFemale JIC Swivel
Tube OD3/4"
StandardSAE J514 - Class 2B Thread
Thread Type1-1/16-12 UN
Connection B
TypeMale JIC
Tube OD3/8"
StandardSAE J514 - Class 2A Thread
Thread Type1-1/16-12 UN
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeReducer
Weight0.25 lb
PlatingNone
Cross References
Aeroquip259-2215-12-6
Parker12-6 TRTXN-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
