HGW HYDRAULICS

2406-12-12

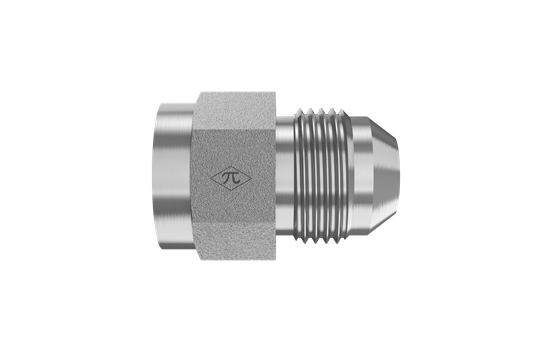

3/4" Female JIC 37° Swivel × 3/4" Male JIC 37° Flare · Straight Swivel Reducer

The HGW 2406-12-12 is a straight swivel reducer joining 3/4" female JIC 37° swivel to 3/4" male JIC 37° flare. Made from trivalent-zinc-plated steel, it uses SAE J514 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Straight Swivel Reducer
$5.65
(0) Write a Review
SKU:
2406-12-12

Product Details

Connection A
TypeFemale JIC 37° Swivel
Tube Size3/4"
StandardSAE J514 · Class 2B Thread
Thread1-1/16-12
Connection B
TypeMale JIC 37° Flare
Tube Size3/4"
StandardSAE J514 · Class 2A Thread
Thread1-1/16-12
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeStraight Swivel Reducer
Weight0.24 lb
Cross References
Aeroquip2215-12-12S
Parker12 TRTXN-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
