HGW HYDRAULICS

2406-14-08

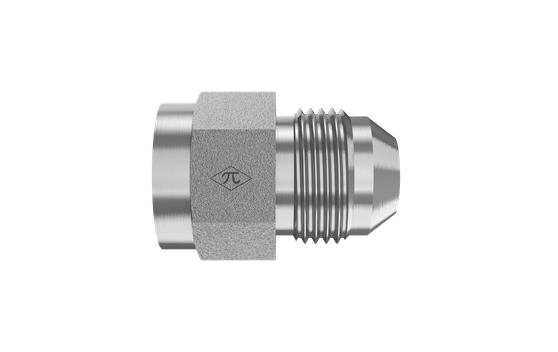

7/8" Female JIC 37° Swivel × 1/2" Male JIC 37° Flare · Straight Swivel Reducer

The HGW 2406-14-08 is a straight swivel reducer joining 7/8" female JIC 37° swivel to 1/2" male JIC 37° flare. Made from trivalent-zinc-plated steel, it uses SAE J514 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Straight Swivel Reducer
$12.92
(0) Write a Review
SKU:
2406-14-08

Product Details

Connection A
TypeFemale JIC 37° Swivel
Tube Size7/8"
StandardSAE J514 · Class 2B Thread
Thread1-3/16-12
Connection B
TypeMale JIC 37° Flare
Tube Size1/2"
StandardSAE J514 · Class 2A Thread
Thread3/4-16
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeStraight Swivel Reducer
Weight0.29 lb
Cross References
Aeroquip2215-14-8S
Parker14-8 TRTXN-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
