HGW HYDRAULICS

2406-16-10-SS

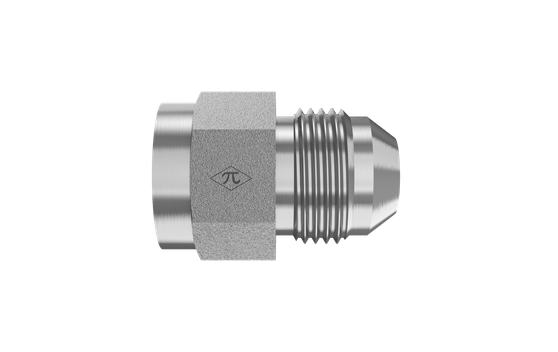

1" Female JIC 37° Swivel × 5/8" Male JIC 37° Flare · Straight Swivel Reducer

The HGW 2406-16-10-SS is a straight swivel reducer joining 1" female JIC 37° swivel to 5/8" male JIC 37° flare. Made from stainless steel, it uses SAE J514 interfaces for compatible hydraulic applications.

  • Stainless Steel
  • Straight Swivel Reducer
$206.54
(0) Write a Review
SKU:
2406-16-10-SS

Product Details

Connection A
TypeFemale JIC 37° Swivel
Tube Size1"
StandardSAE J514 · Class 2B Thread
Thread1-5/16-12
Connection B
TypeMale JIC 37° Flare
Tube Size5/8"
StandardSAE J514 · Class 2A Thread
Thread7/8-14
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeStraight Swivel Reducer
Weight0.40 lb
Cross References
Aeroquip259-2215-16-10
Parker16-10 TRTXN-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
