HGW HYDRAULICS

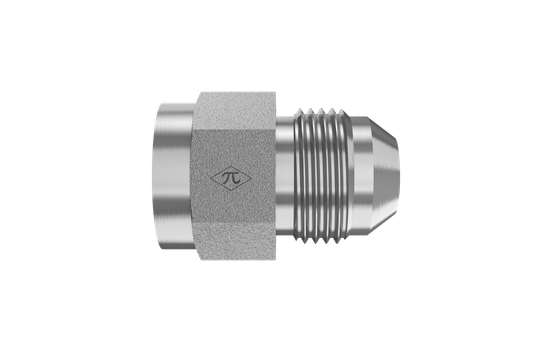

2406-16-12-SS

1" Female JIC Swivel x 3/4" Male JIC

2406-16-12-SS is a 1" Female JIC Swivel x 3/4" Male JIC in the 2406 Series. For connecting two 37° flared tubes or lines of different sizes in a straight configuration; the swivel end allows the joint to be tightened without twisting the line.

  • Stainless Steel
  • Reducer
  • None
$57.12
(0) Write a Review
SKU:
2406-16-12-SS

Product Details

Connection A
TypeFemale JIC Swivel
Tube OD1"
StandardSAE J514 - Class 2B Thread
Thread Type1-5/16-12 UN
Connection B
TypeMale JIC
Tube OD3/4"
StandardSAE J514 - Class 2A Thread
Thread Type1-5/16-12 UN
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeReducer
Weight0.44 lb
PlatingNone
Cross References
Aeroquip259-2215-16-12
Parker16-12 TRTXN-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
