HGW HYDRAULICS

2406-16-20

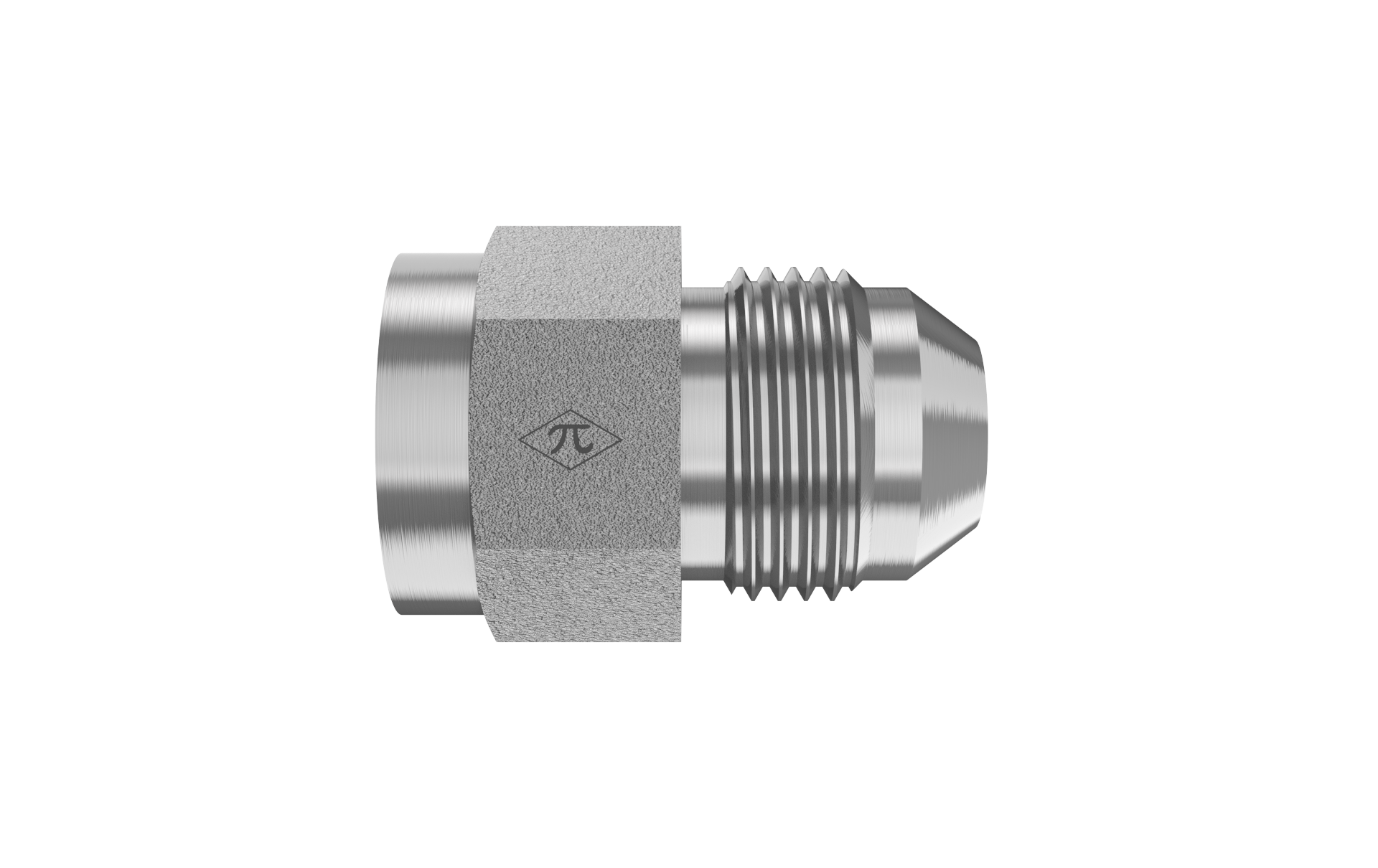

1" Female JIC Swivel x 1-1/4" Male JIC

2406-16-20 is a 1" Female JIC Swivel x 1-1/4" Male JIC in the 2406 Series. For connecting two 37° flared tubes or lines of different sizes in a straight configuration; the swivel end allows the joint to be tightened without twisting the line.

  • Steel
  • Trivalent Zinc
  • Reducer
$11.13
(0) Write a Review
SKU:
2406-16-20

Product Details

Connection A
TypeFemale JIC Swivel
Tube OD1"
StandardSAE J514 - Class 2B Thread
Thread Type1-5/16-12 UN
Connection B
TypeMale JIC
Tube OD1-1/4"
StandardSAE J514 - Class 2A Thread
Thread Type1-5/16-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeReducer
Weight0.58 lb
Cross References
Aeroquip2215-16-20S
Parker16-20 TRTXN-S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
