HGW HYDRAULICS

2406-32-20-SS

2" Female JIC 37° Swivel × 1-1/4" Male JIC 37° Flare · Straight Swivel Reducer

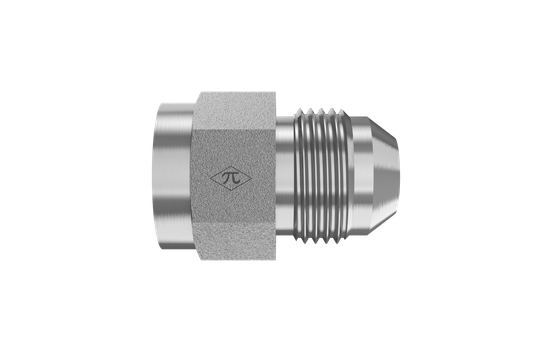

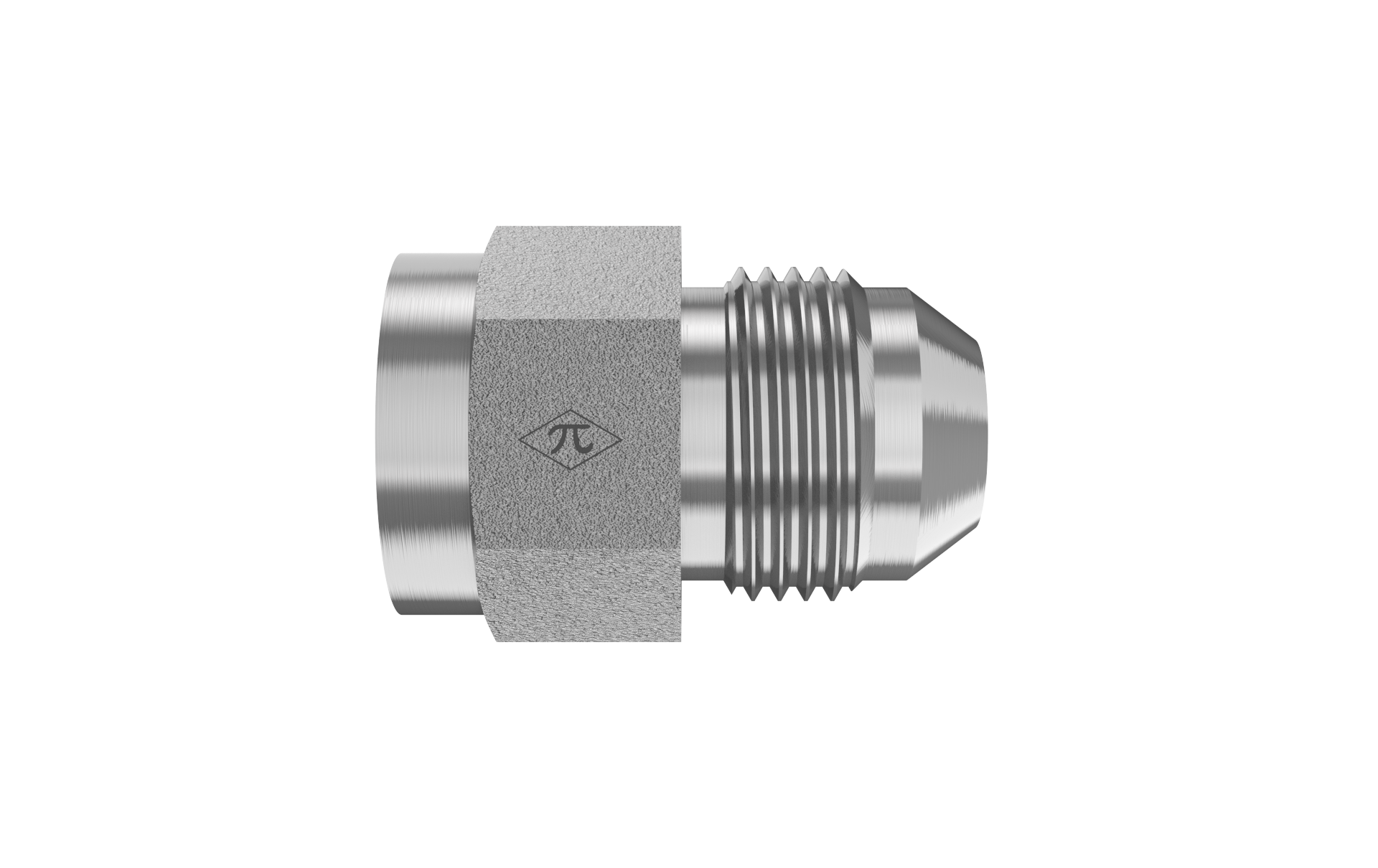

The HGW 2406-32-20-SS is a straight swivel reducer joining 2" female JIC 37° swivel to 1-1/4" male JIC 37° flare. Made from stainless steel, it uses SAE J514 interfaces for compatible hydraulic applications.

  • Stainless Steel
  • Straight Swivel Reducer
$955.57
(0) Write a Review
SKU:
2406-32-20-SS

Product Details

Connection A
TypeFemale JIC 37° Swivel
Tube Size2"
StandardSAE J514 · Class 2B Thread
Thread2-1/2-12
Connection B
TypeMale JIC 37° Flare
Tube Size1-1/4"
StandardSAE J514 · Class 2A Thread
Thread1-5/8-12
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeStraight Swivel Reducer
Weight1.85 lb
Cross References
Aeroquip259-2215-32-20
Parker32-20 TRTXN-SS

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
