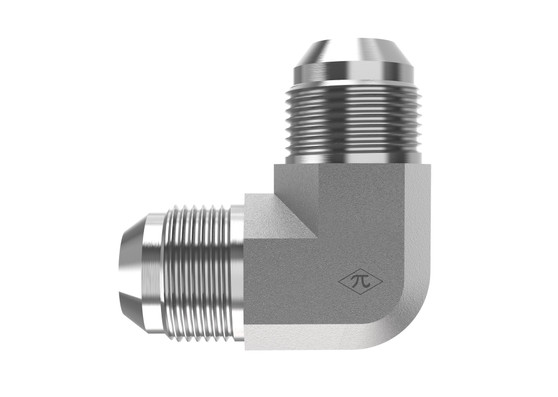

Google Merchant product image

HGW HYDRAULICS

2500-16-12-FG

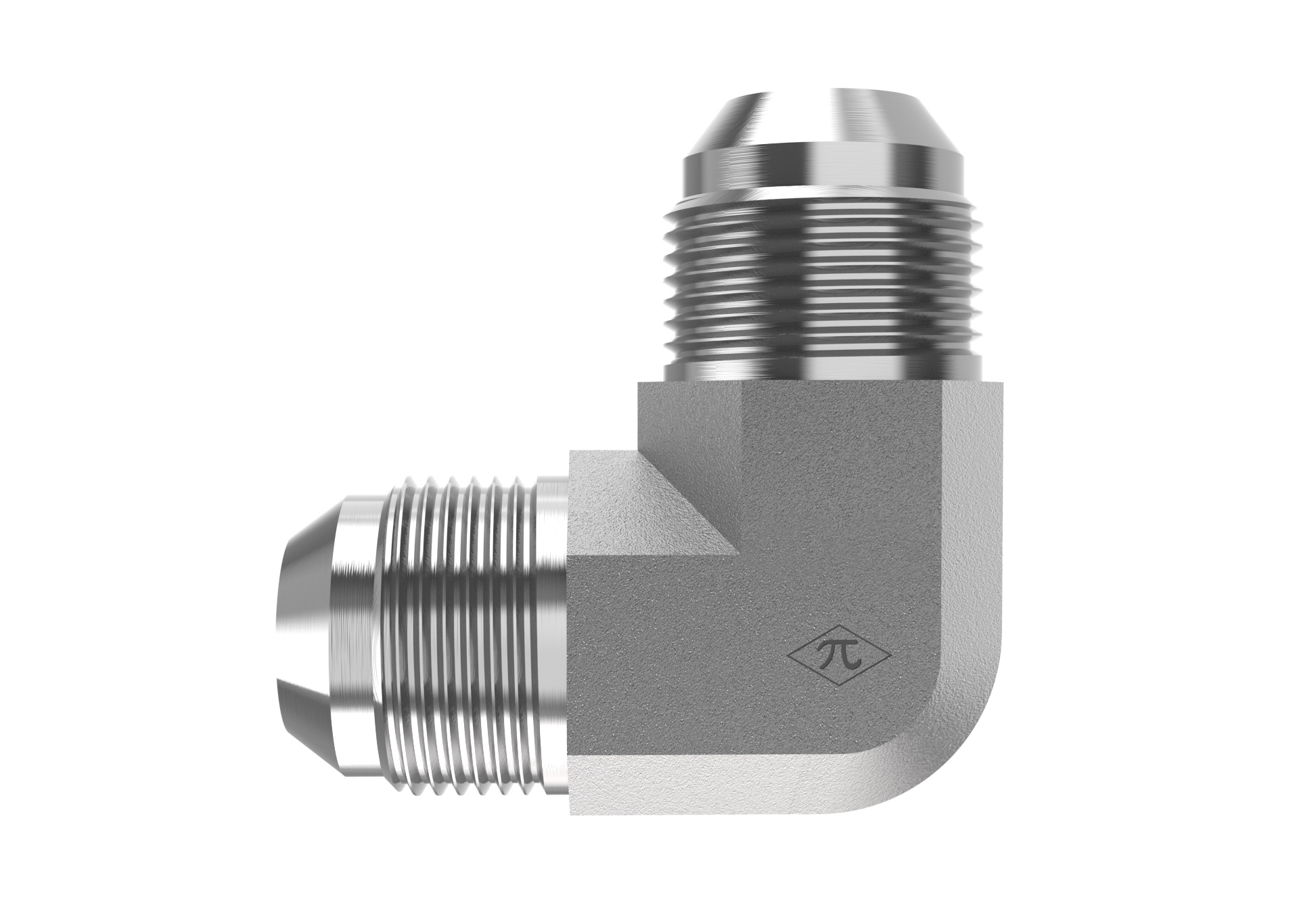

1" Male JIC x 3/4" Male JIC

2500-16-12-FG is a 1" Male JIC x 3/4" Male JIC in the 2500-FG Series. For connecting two 37° flared tubes or lines at a 90° angle.

  • Steel
  • Trivalent Zinc
  • Union Elbow
$15.29
(0) Write a Review
SKU:
2500-16-12-FG

Product Details

Connection A
TypeMale JIC
Tube OD1"
StandardSAE J514 - Class 2A Thread
Thread Type1-5/16-12 UN
Connection B
TypeMale JIC
Tube OD3/4"
StandardSAE J514 - Class 2A Thread
Thread Type1-5/16-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeUnion Elbow
Weight0.74 lb
Cross References
Aeroquip2039-16-12S
Parker16-12 ETX-S
SAE Ref.SAE J514 16-12 070201C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
