HGW HYDRAULICS

2500-16-16-SS

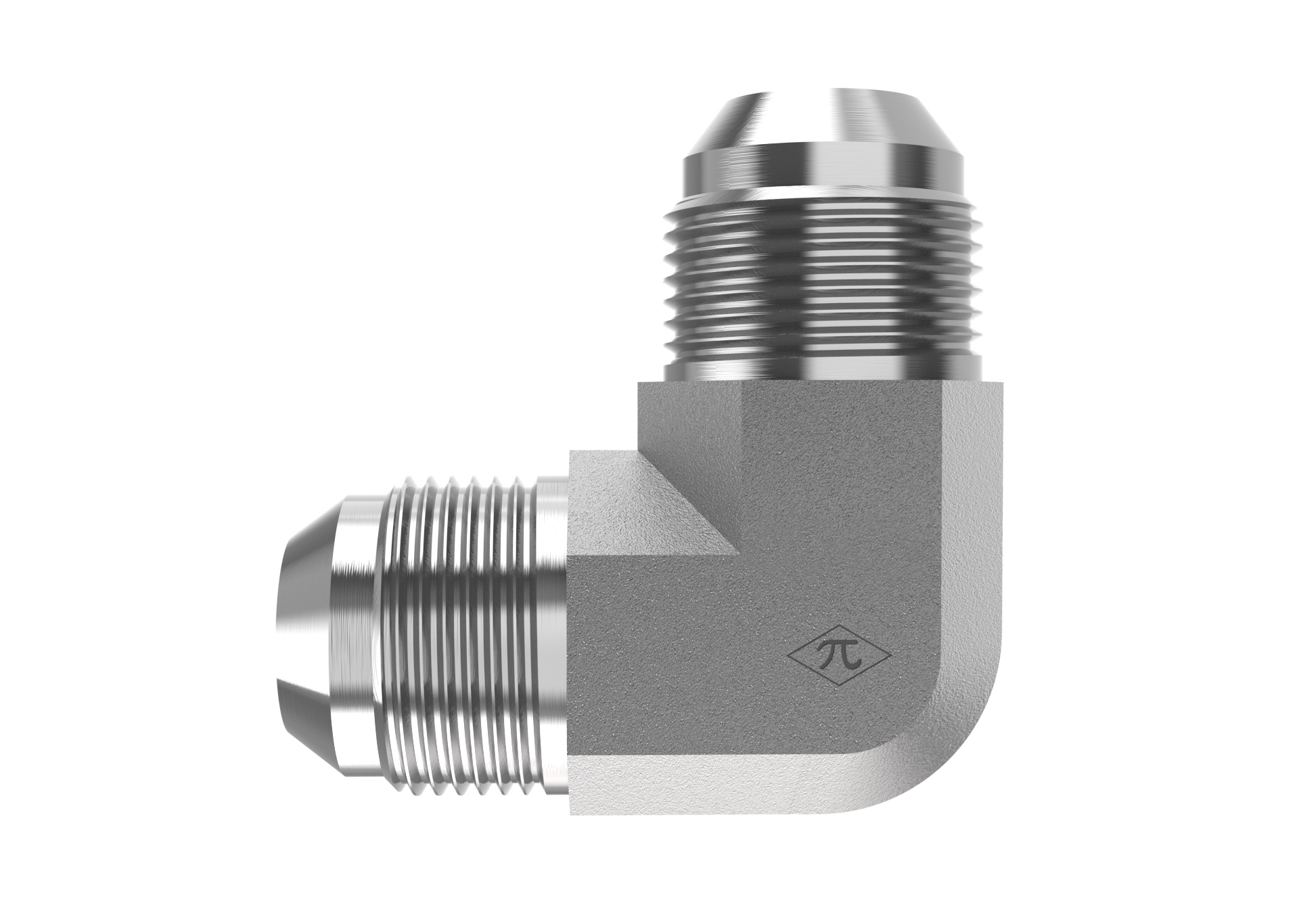

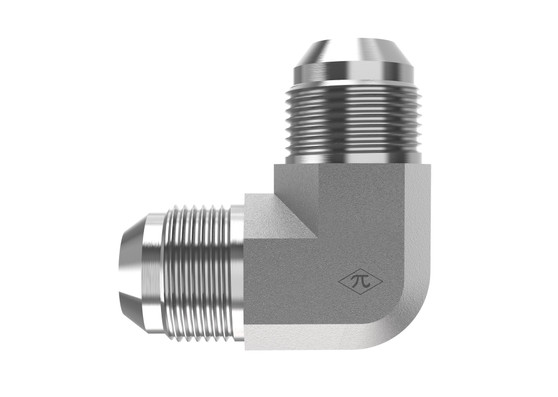

1" Male JIC x 1" Male JIC

2500-16-16-SS is a 1" Male JIC x 1" Male JIC in the 2500-FG Series. For connecting two 37° flared tubes or lines at a 90° angle.

  • Stainless Steel
  • Union Elbow
  • None
$76.96
(0) Write a Review
SKU:
2500-16-16-SS

Product Details

Connection A
TypeMale JIC
Tube OD1"
StandardSAE J514 - Class 2A Thread
Thread Type1-5/16-12 UN
Connection B
TypeMale JIC
Tube OD1"
StandardSAE J514 - Class 2A Thread
Thread Type1-5/16-12 UN
Connection C
Connection D
Specifications
MaterialStainless Steel
ShapeUnion Elbow
Weight0.76 lb
PlatingNone
Cross References
Aeroquip259-2039-16-16
Parker16 ETX-SS
SAE Ref.SAE J514 16-16 070201S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
