HGW HYDRAULICS

2500-24-24-FG

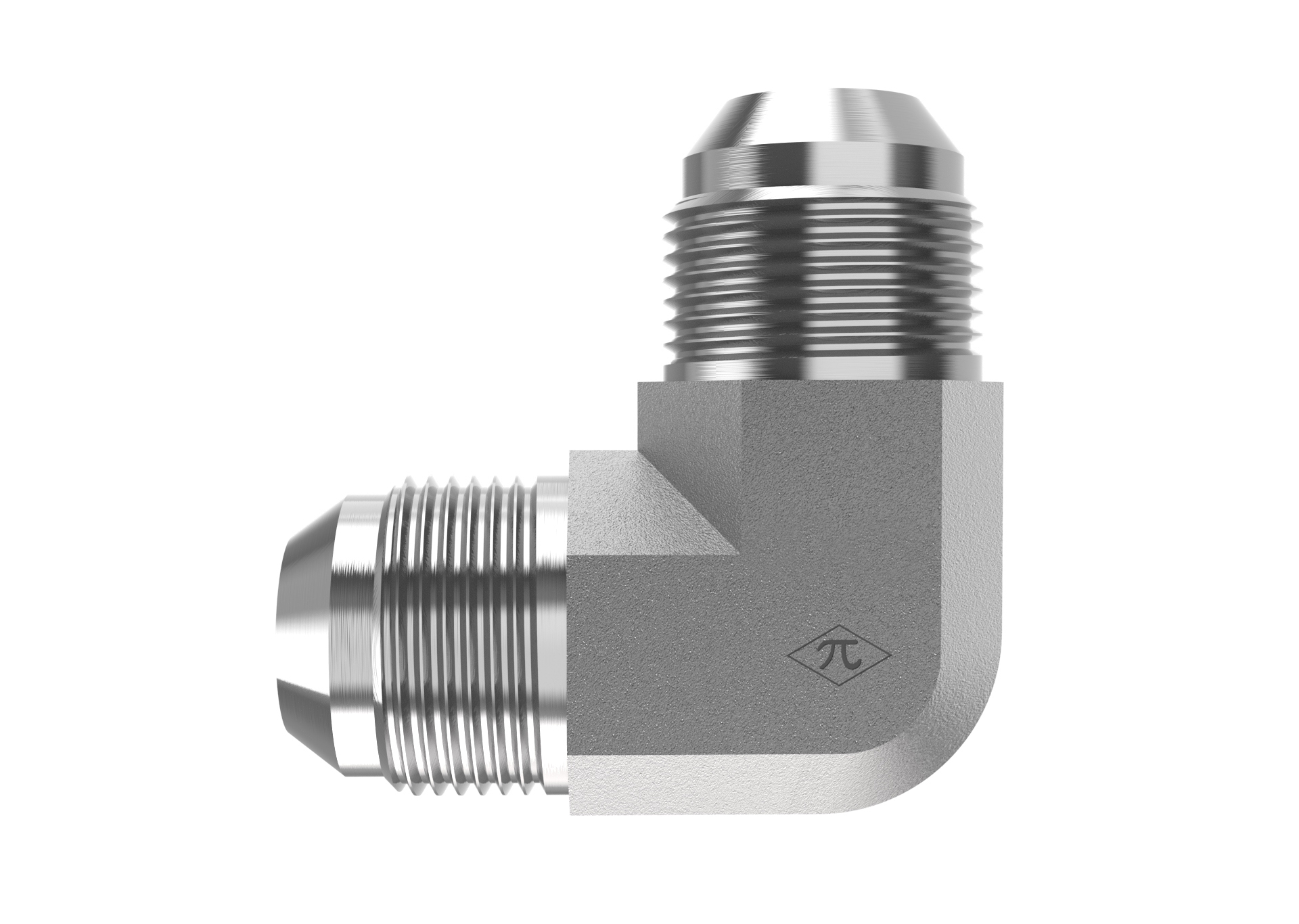

1-1/2" Male JIC x 1-1/2" Male JIC

2500-24-24-FG is a 1-1/2" Male JIC x 1-1/2" Male JIC in the 2500-FG Series. For connecting two 37° flared tubes or lines at a 90° angle.

  • Steel
  • Trivalent Zinc
  • Union Elbow
$42.09
(0) Write a Review
SKU:
2500-24-24-FG

Product Details

Connection A
TypeMale JIC
Tube OD1-1/2"
StandardSAE J514 - Class 2A Thread
Thread Type1-7/8-12 UN
Connection B
TypeMale JIC
Tube OD1-1/2"
StandardSAE J514 - Class 2A Thread
Thread Type1-7/8-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeUnion Elbow
Weight1.82 lb
Cross References
Aeroquip2039-24-24S
Parker24 ETX-S
SAE Ref.SAE J514 24-24 070201C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
