HGW HYDRAULICS

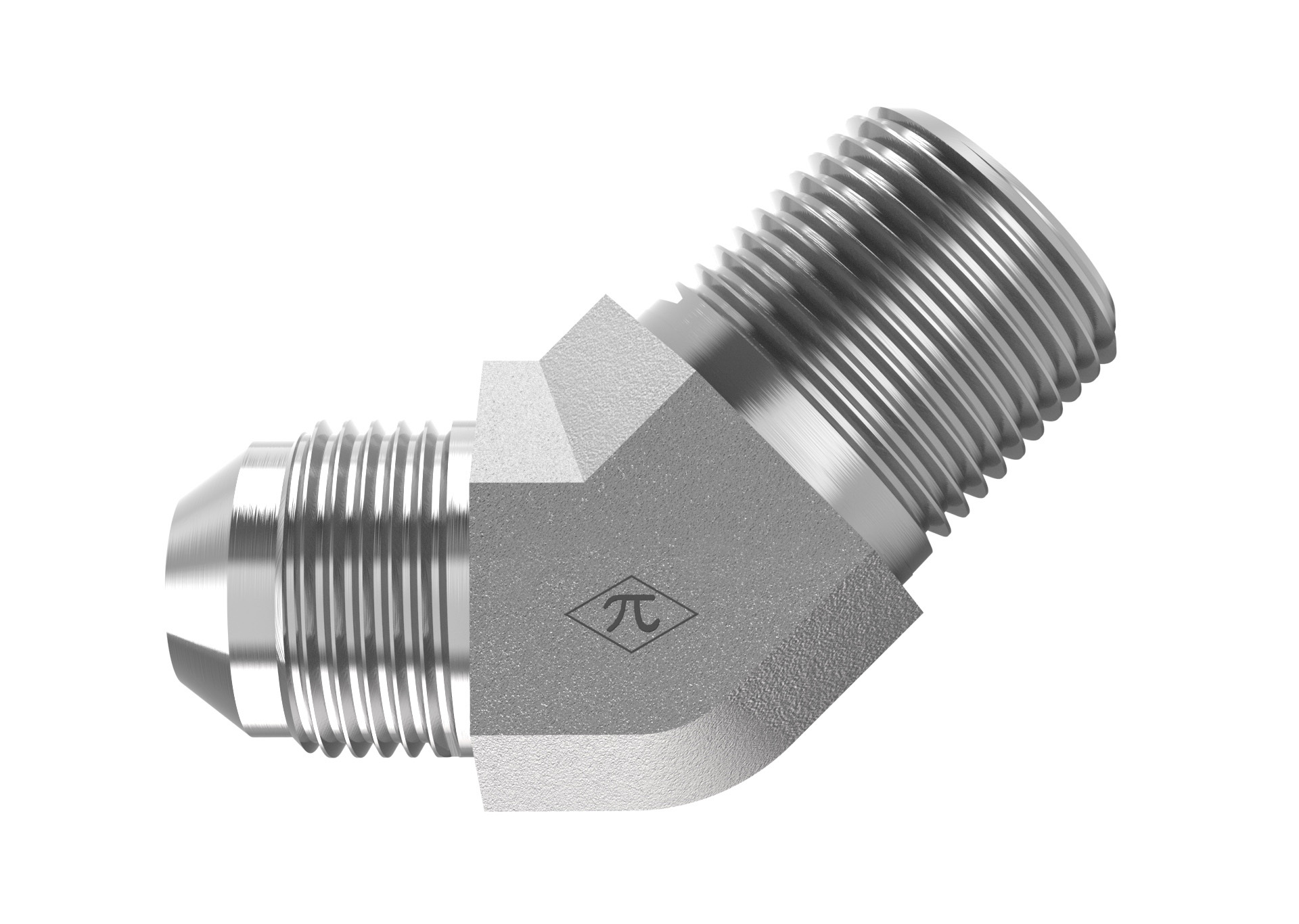

2503-32-32-FG

2" Male JIC x 2" Male NPTF 30°

2503-32-32-FG is a 2" Male JIC x 2" Male NPTF 30° in the 2503-FG Series. For connecting 37° flared tubes or lines to pipe at a 45° angle without requiring pipe sealant on the JIC end.

  • Steel
  • Trivalent Zinc
  • Male Elbow
$89.31
(0) Write a Review
SKU:
2503-32-32-FG

Product Details

Connection A
TypeMale JIC
Tube OD2"
StandardSAE J514 - Class 2A Thread
Thread Type2-1/2-12 UN
Connection B
TypeMale NPTF 30°
Pipe Size2"
StandardSAE J476
Thread Type2-1/2-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Elbow
Weight2.42 lb
Cross References
Aeroquip2023-32-32S
Parker32 VTX-S
SAE Ref.SAE J514 32-32 070302C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
