HGW HYDRAULICS

2503-40-40

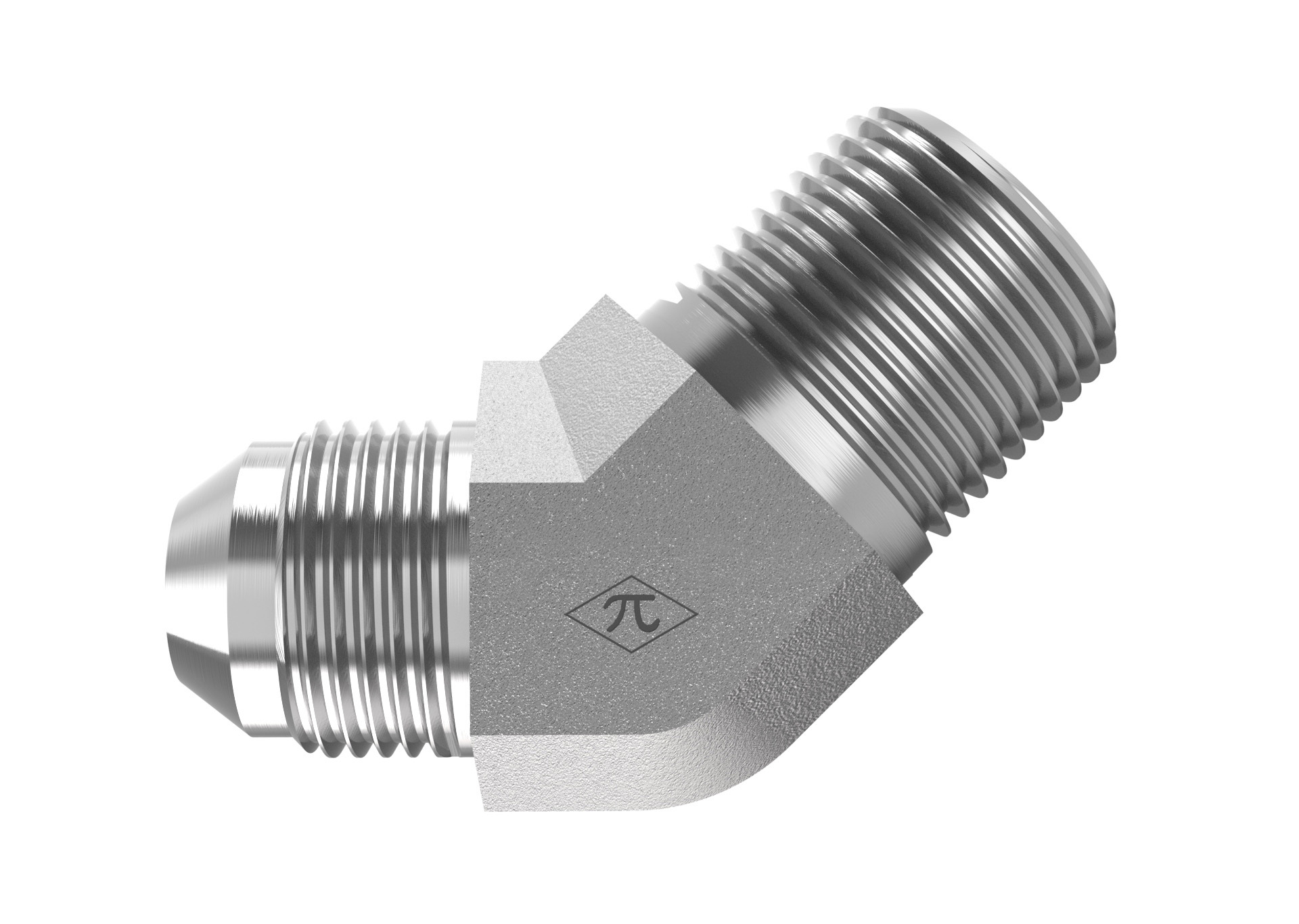

2-1/2" Male JIC 37° Flare × 2-1/2" Male NPTF · 45° Male NPTF Elbow

The HGW 2503-40-40-FG is a 45° male NPTF elbow joining 2-1/2" male JIC 37° flare to 2-1/2" male NPTF. Made from trivalent-zinc-plated steel, it uses SAE J514 and SAE J476 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • 45° Male Pipe Elbow
$757.26
(0) Write a Review
SKU:
2503-40-40

Product Details

Connection A
TypeMale JIC 37° Flare
Tube Size2-1/2"
StandardSAE J514 · Class 2A Thread
Thread3-12
Connection B
TypeMale NPTF
Pipe Size2-1/2"
StandardSAE J476
Thread2-1/2-8
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Shape45° Male Pipe Elbow
Weight4.00 lb
Cross References
SAE Ref.SAE J514 40-40 070302C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
