2504-12-12-FG

3/4" Male JIC x 3/4" Female NPTF 30°

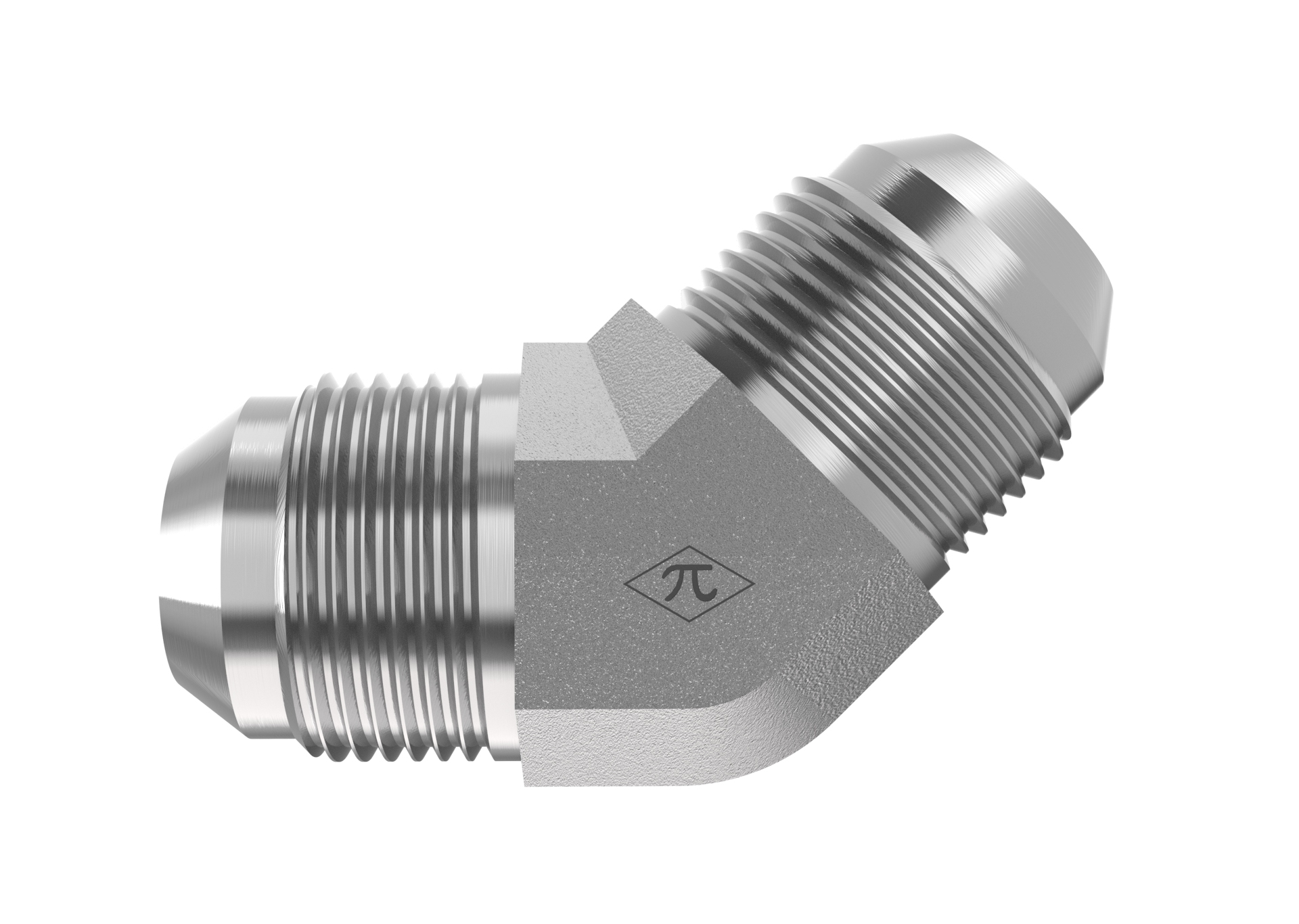

2504-12-12-FG is a 3/4" Male JIC x 3/4" Female NPTF 30° in the 2504-FG Series. For connecting 37° flared tubes or lines to a male pipe thread at a 45° angle.

  • Steel
  • Trivalent Zinc
  • Union Elbow
$20.01
(0) Write a Review
SKU:
2504-12-12-FG

Product Details

Connection A
TypeMale JIC
Tube OD3/4"
StandardSAE J514 - Class 2A Thread
Thread Type1-1/16-12 UN
Connection B
TypeFemale NPTF 30°
Pipe Size3/4"
StandardSAE J476
Thread Type1-1/16-12 UN
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeUnion Elbow
Weight0.37 lb
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
