HGW HYDRAULICS

2504-16-16

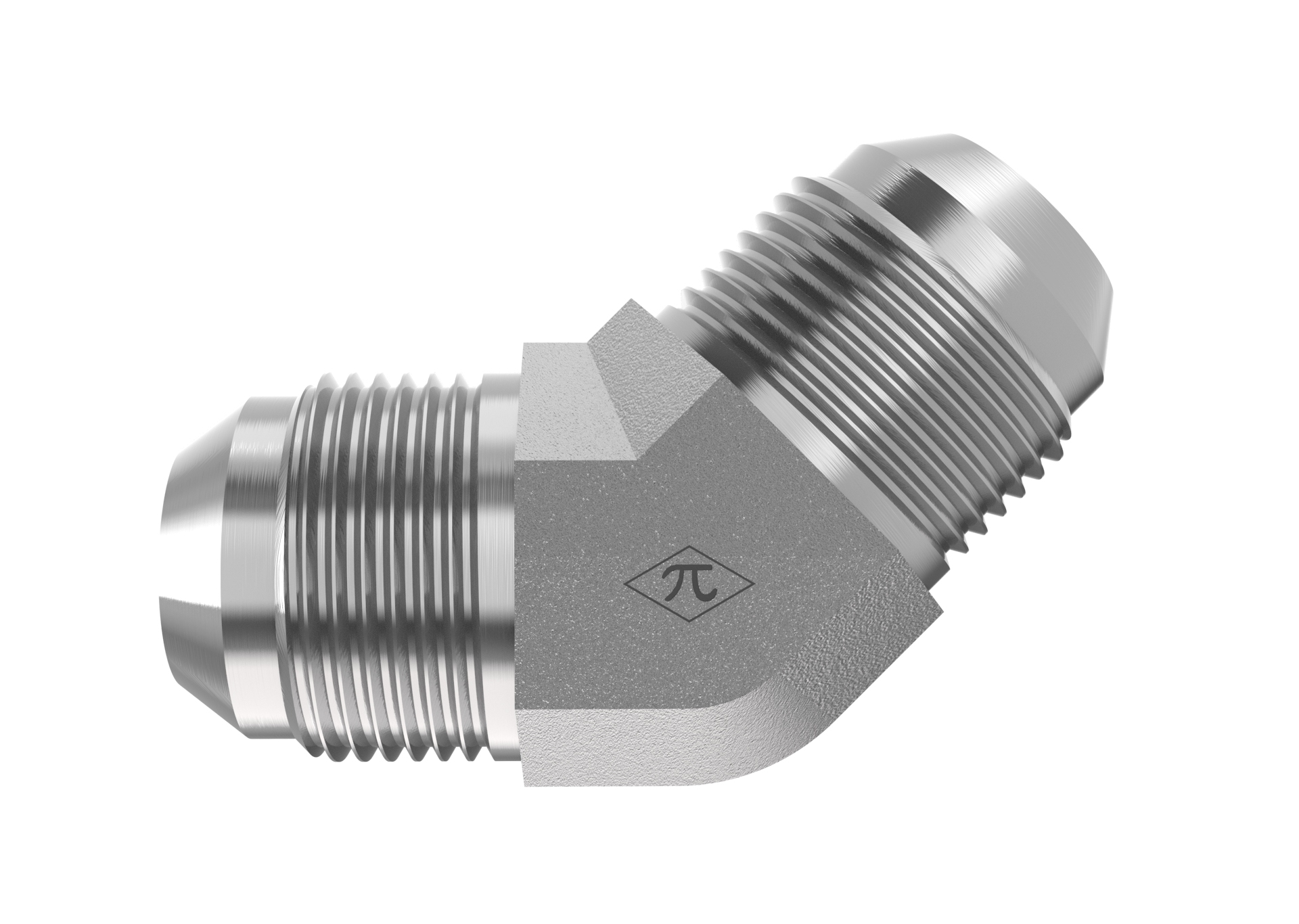

1" Male JIC 37° Flare × 1" Male JIC 37° Flare · 45° Union Elbow

The HGW 2504-16-16-FG is a 45° union elbow joining 1" male JIC 37° flare to 1" male JIC 37° flare. Made from trivalent-zinc-plated steel, it uses SAE J514 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • 45° Union Elbow
$12.90
(0) Write a Review
SKU:
2504-16-16

Product Details

Connection A
TypeMale JIC 37° Flare
Tube Size1"
StandardSAE J514 · Class 2A Thread
Thread1-5/16-12
Connection B
TypeMale JIC 37° Flare
Tube Size1"
StandardSAE J514 · Class 2A Thread
Thread1-5/16-12
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Shape45° Union Elbow
Weight0.60 lb
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
