HGW HYDRAULICS

2601-05-05-04

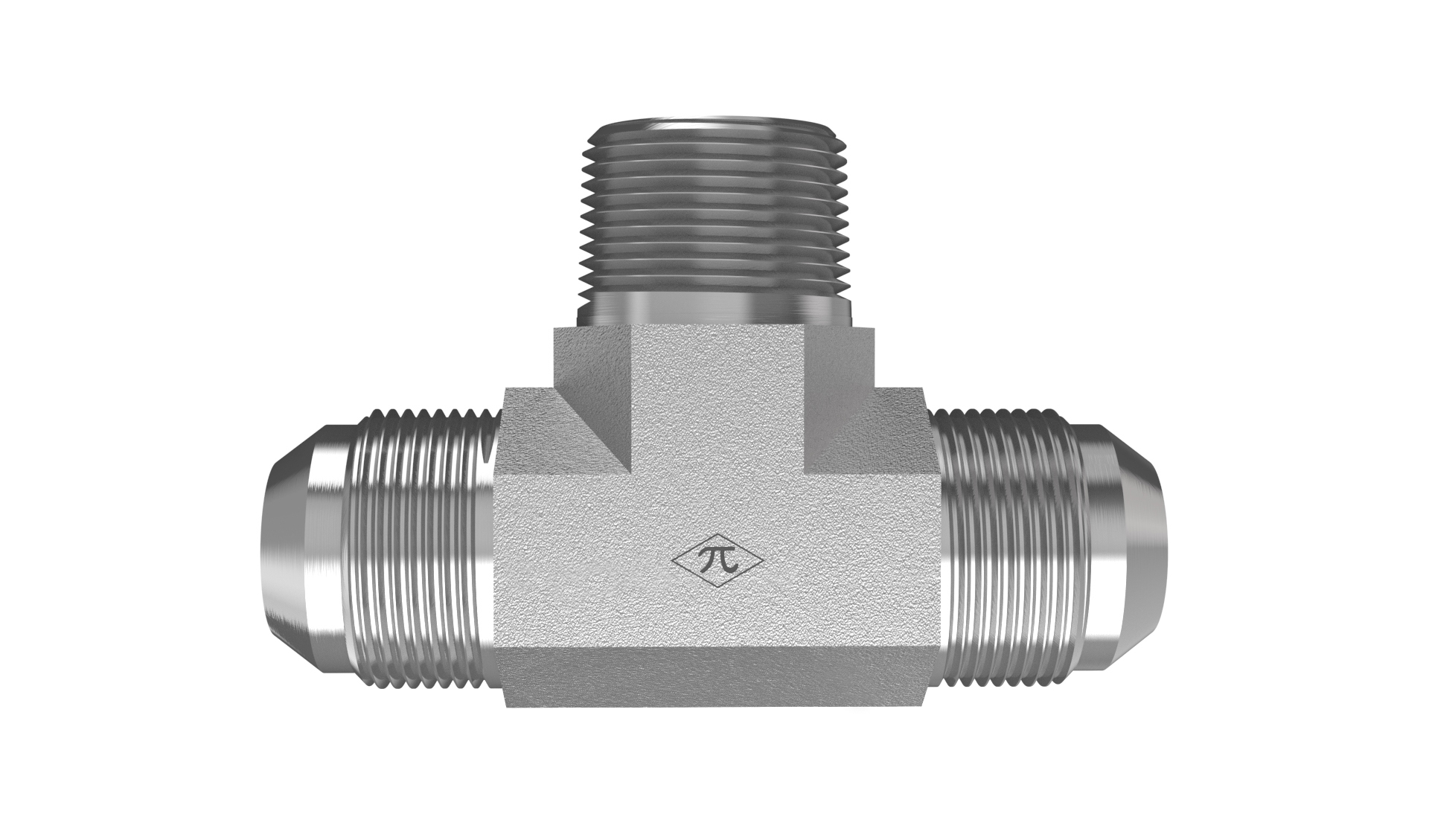

5/16" Male JIC 37° Flare × 5/16" Male JIC 37° Flare × 1/4" Male NPTF · Branch Tee

The HGW 2601-05-05-04-FG is a branch tee combining 5/16" male JIC 37° flare, 5/16" male JIC 37° flare, and 1/4" male NPTF. Made from trivalent-zinc-plated steel, it uses SAE J514 and SAE J476 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Male Pipe Branch Tee
$6.44
(0) Write a Review
SKU:
2601-05-05-04

Product Details

Connection A
TypeMale JIC 37° Flare
Tube Size5/16"
StandardSAE J514 · Class 2A Thread
Thread1/2-20
Connection B
TypeMale JIC 37° Flare
Tube Size5/16"
StandardSAE J514 · Class 2A Thread
Thread1/2-20
Connection C
TypeMale NPTF
Pipe Size1/4"
StandardSAE J476
Thread1/4-18
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Pipe Branch Tee
Weight0.13 lb
Cross References
Aeroquip2030-4-5S
Parker5-5-4 STX-S
SAE Ref.SAE J514 5-5-4 070425C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
