HGW HYDRAULICS

2601-16-16-12-FG

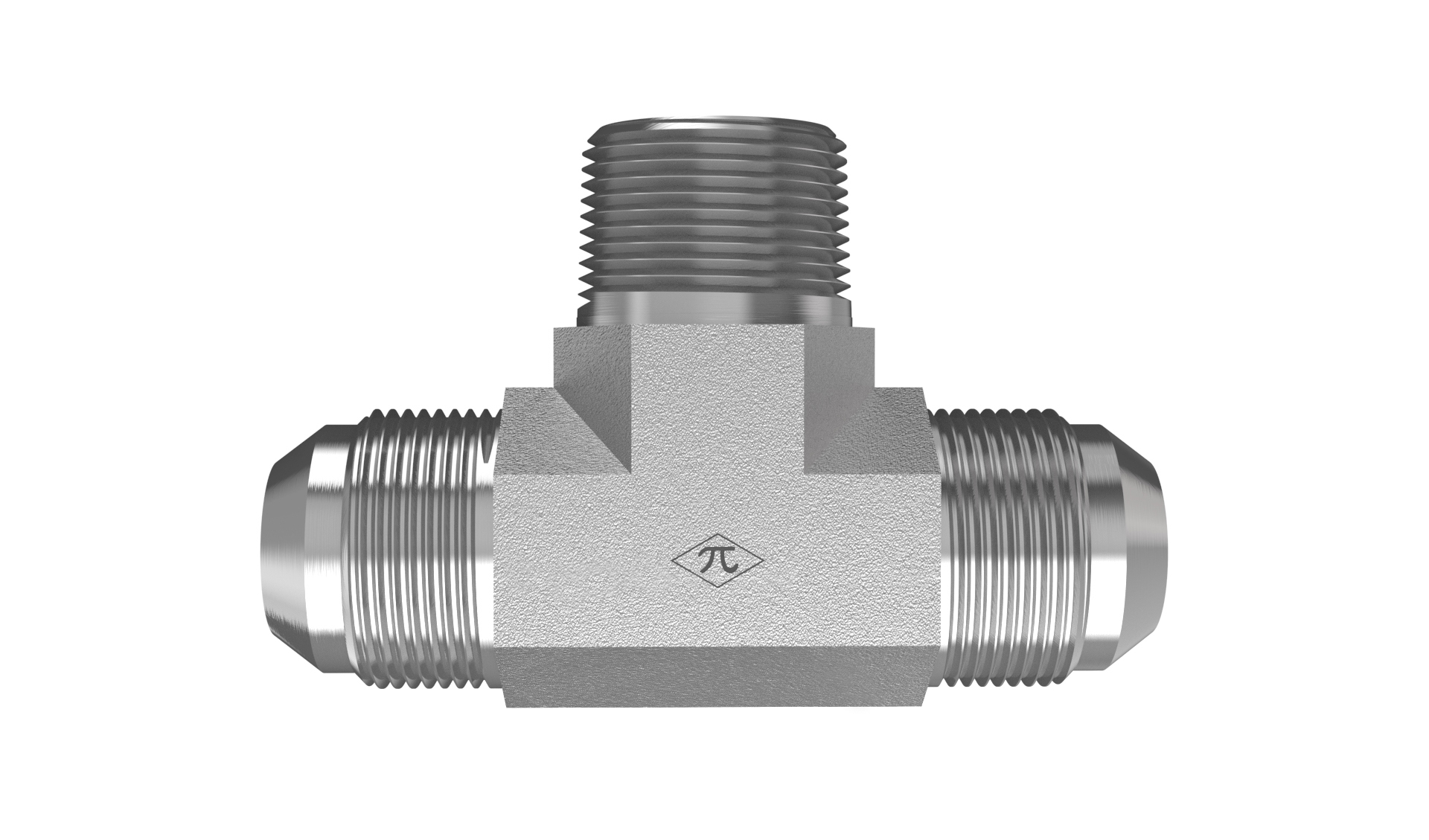

1" Male JIC x 1" Male JIC x 3/4" Male NPTF 30°

2601-16-16-12-FG is a 1" Male JIC x 1" Male JIC x 3/4" Male NPTF 30° in the 2601-FG Series. For branching pipe to two 37° flared tubes or lines without requiring pipe sealant.

  • Steel
  • Trivalent Zinc
  • Male Branch Tee
$31.82
(0) Write a Review
SKU:
2601-16-16-12-FG

Product Details

Connection A
TypeMale JIC
Tube OD1"
StandardSAE J514 - Class 2A Thread
Thread Type1-5/16-12 UN
Connection B
TypeMale JIC
Tube OD1"
StandardSAE J514 - Class 2A Thread
Thread Type1-5/16-12 UN
Connection C
TypeMale NPTF 30°
Pipe Size3/4"
StandardSAE J476
Thread Type1-5/16-12 UN
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Branch Tee
Weight0.89 lb
Cross References
Aeroquip2030-12-16S
Parker16-16-12 STX-S
SAE Ref.SAE J514 16-16-12 070425C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
