HGW HYDRAULICS

2601-16-16-16

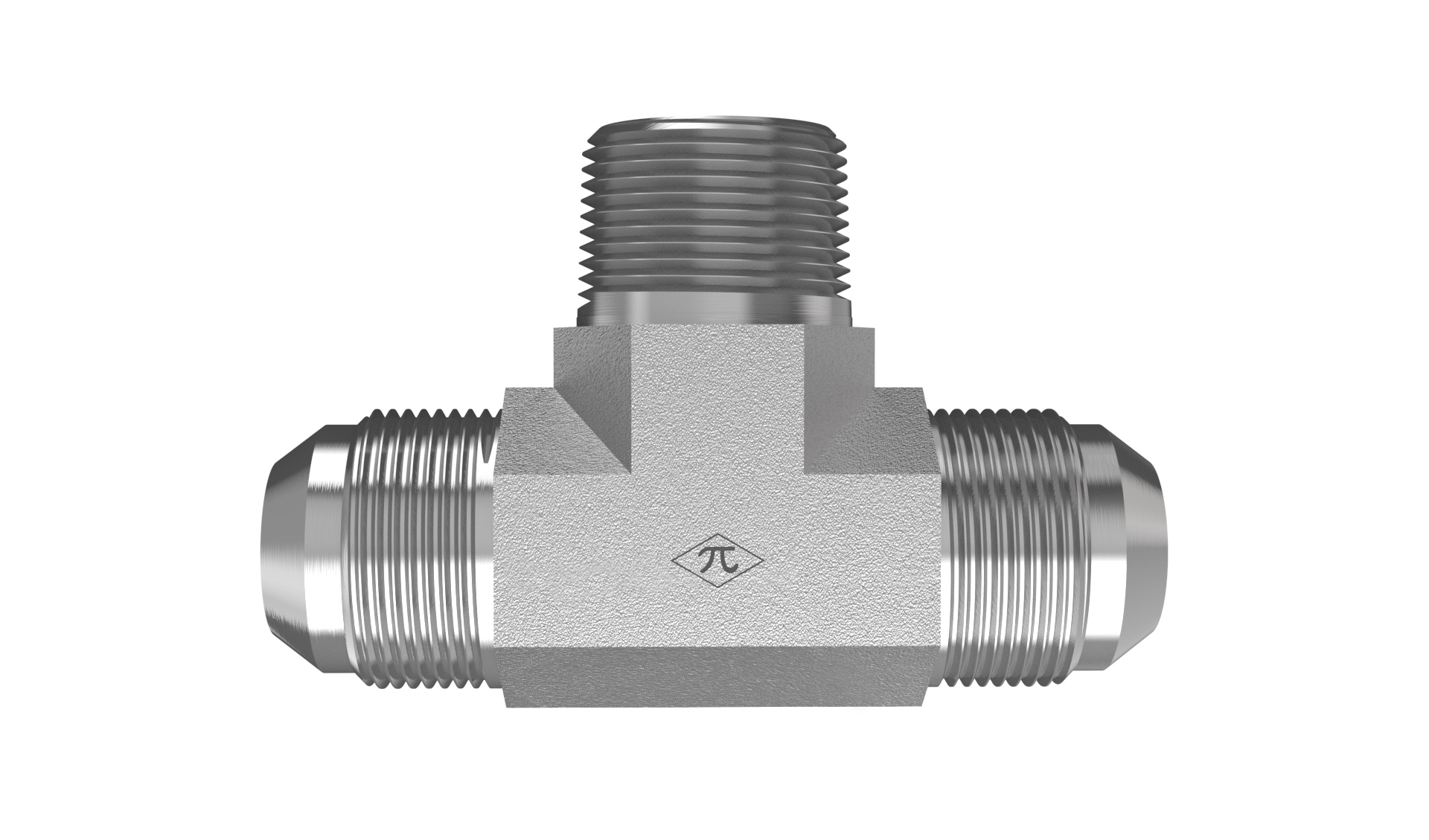

1" Male JIC 37° Flare × 1" Male JIC 37° Flare × 1" Male NPTF · Branch Tee

The HGW 2601-16-16-16-FG is a branch tee combining 1" male JIC 37° flare, 1" male JIC 37° flare, and 1" male NPTF. Made from trivalent-zinc-plated steel, it uses SAE J514 and SAE J476 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Male Pipe Branch Tee
$16.34
(0) Write a Review
SKU:
2601-16-16-16

Product Details

Connection A
TypeMale JIC 37° Flare
Tube Size1"
StandardSAE J514 · Class 2A Thread
Thread1-5/16-12
Connection B
TypeMale JIC 37° Flare
Tube Size1"
StandardSAE J514 · Class 2A Thread
Thread1-5/16-12
Connection C
TypeMale NPTF
Pipe Size1"
StandardSAE J476
Thread1-11-1/2
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeMale Pipe Branch Tee
Weight0.92 lb
Cross References
Aeroquip2030-16-16S
Parker16 STX-S
SAE Ref.SAE J514 16-16-16 070425C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
