HGW HYDRAULICS

2603-08-08-08

1/2" Male JIC 37° Flare × 1/2" Male JIC 37° Flare × 1/2" Male JIC 37° Flare · Union Tee

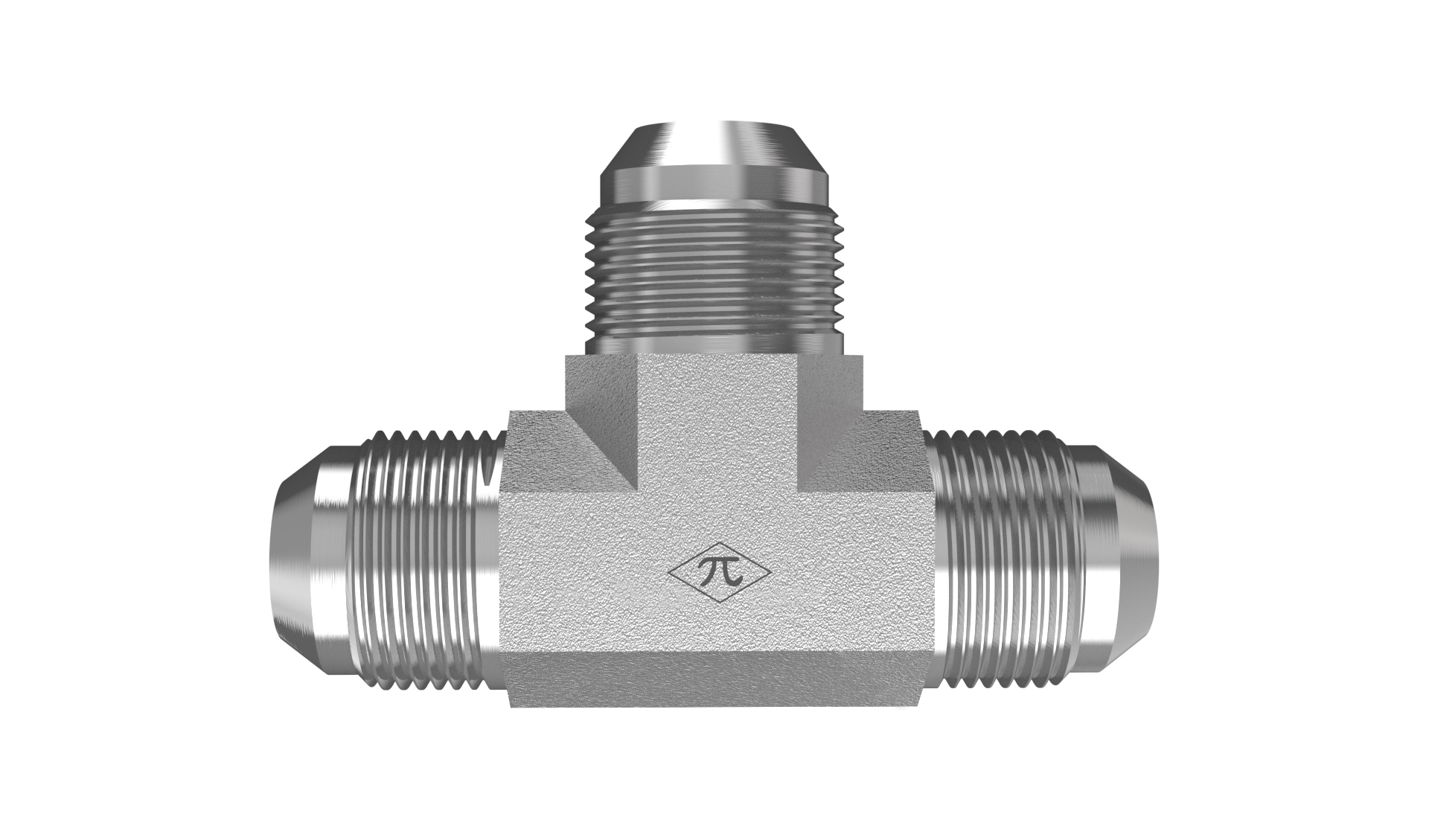

The HGW 2603-08-08-08-FG is a union tee joining 1/2" male JIC 37° flare connections across all 3 ports. Made from trivalent-zinc-plated steel, it uses SAE J514 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Union Tee
$4.56
(0) Write a Review
SKU:
2603-08-08-08

Product Details

Connection A
TypeMale JIC 37° Flare
Tube Size1/2"
StandardSAE J514 · Class 2A Thread
Thread3/4-16
Connection B
TypeMale JIC 37° Flare
Tube Size1/2"
StandardSAE J514 · Class 2A Thread
Thread3/4-16
Connection C
TypeMale JIC 37° Flare
Tube Size1/2"
StandardSAE J514 · Class 2A Thread
Thread3/4-16
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeUnion Tee
Weight0.27 lb
Cross References
Aeroquip2033-8-8S
Parker8 JTX-S
SAE Ref.SAE J514 8-8-8 070401C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
