HGW HYDRAULICS

2603-12-12-12-SS

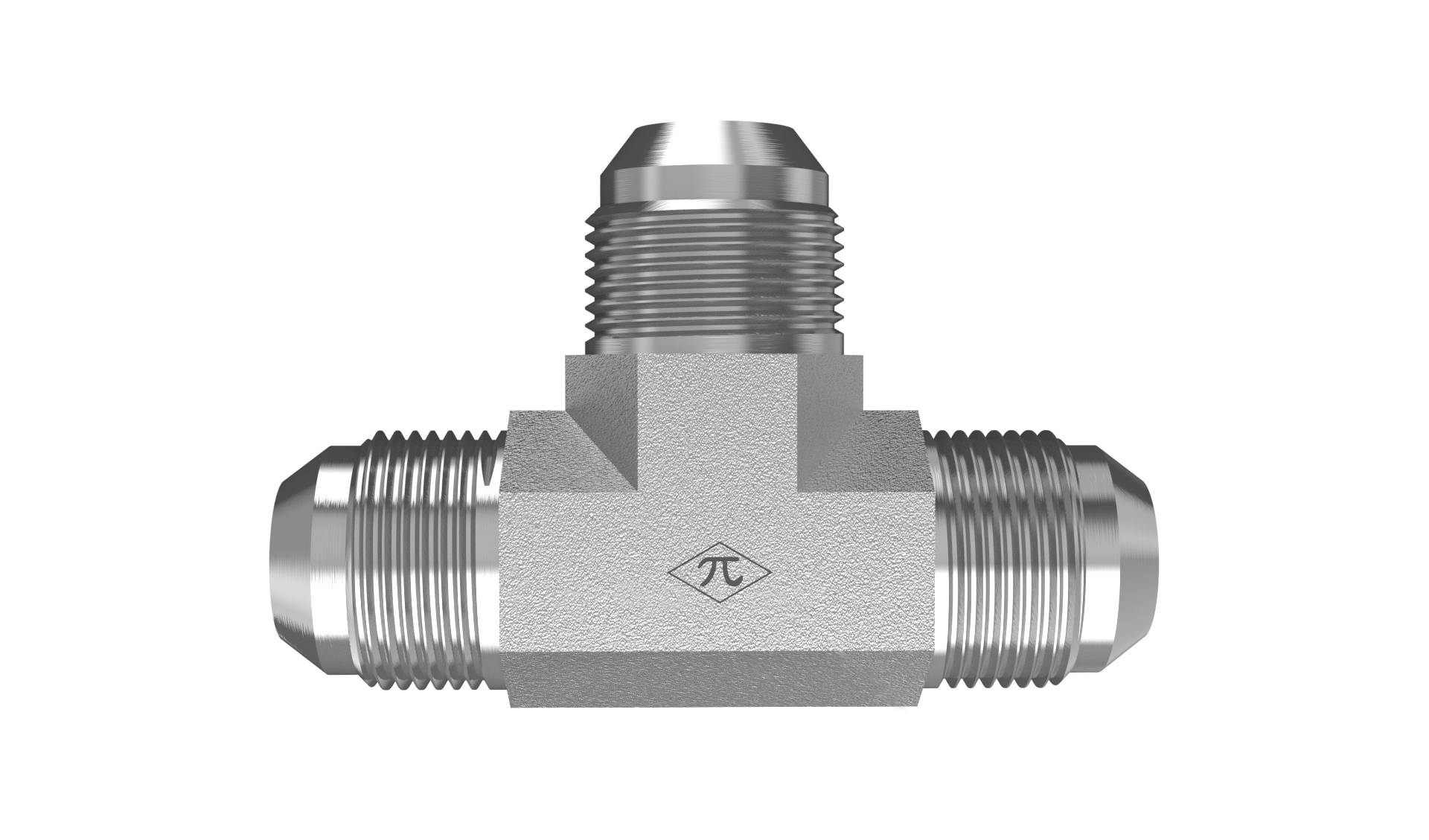

3/4" Male JIC x 3/4" Male JIC x 3/4" Male JIC

2603-12-12-12-SS is a 3/4" Male JIC x 3/4" Male JIC x 3/4" Male JIC in the 2603-FG Series. For joining three 37° flared tubes or lines in a tee configuration.

  • Stainless Steel
  • Passivated
  • Union Tee
$73.48
(0) Write a Review
SKU:
2603-12-12-12-SS

Product Details

Connection A
TypeMale JIC
Tube OD3/4"
StandardSAE J514 - Class 2A Thread
Thread Type1-1/16-12 UN
Connection B
TypeMale JIC
Tube OD3/4"
StandardSAE J514 - Class 2A Thread
Thread Type1-1/16-12 UN
Connection C
TypeMale JIC
Tube OD3/4"
StandardSAE J514 - Class 2A Thread
Thread Type1-1/16-12 UN
Connection D
Specifications
MaterialStainless Steel
PlatingPassivated
ShapeUnion Tee
Weight0.69 lb
Cross References
Aeroquip259-2033-12-12
Parker12 JTX-SS
SAE Ref.SAE J514 12-12-12 070401S

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
