HGW HYDRAULICS

2603-16-16-12-FG

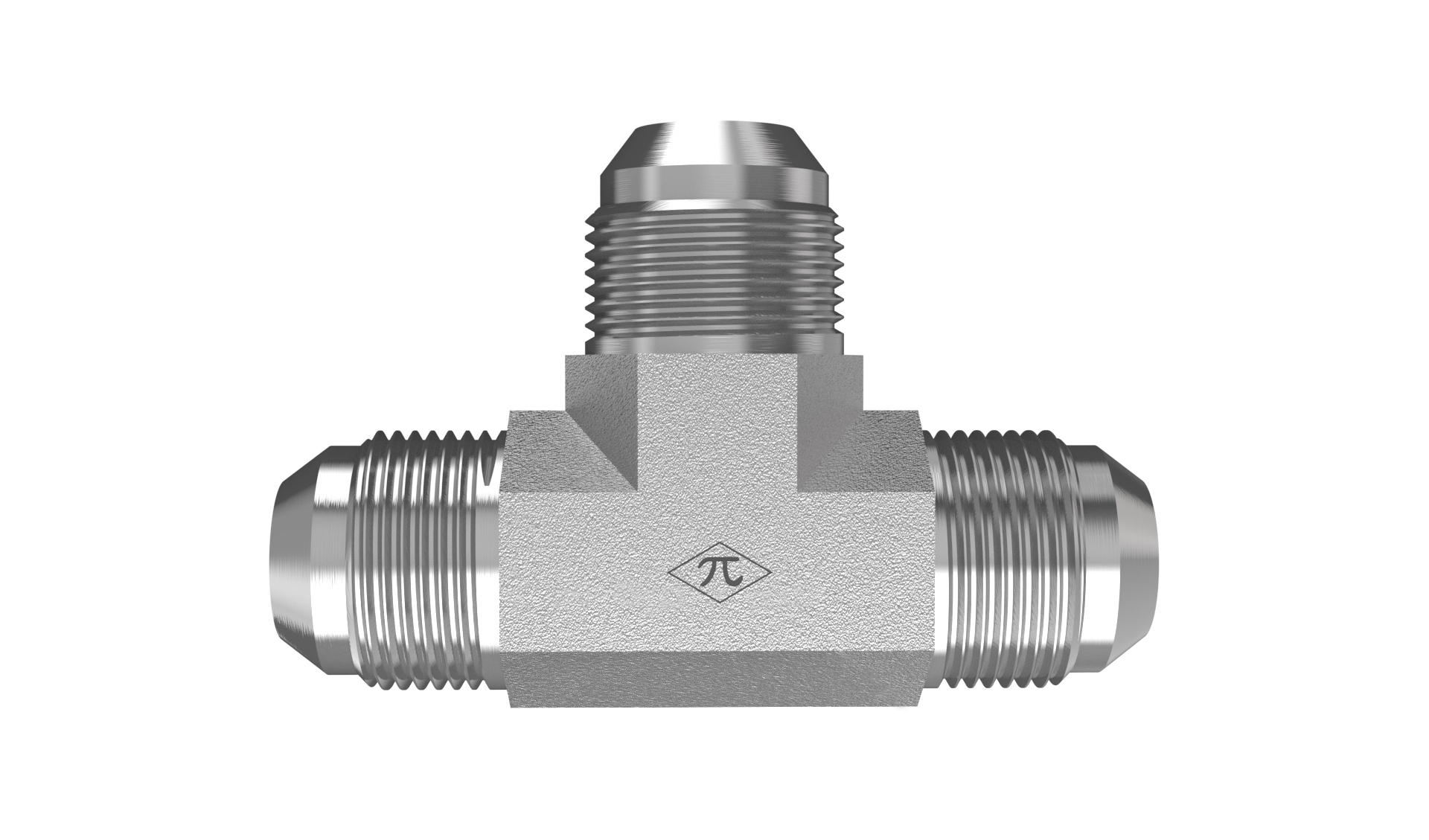

1" Male JIC x 1" Male JIC x 3/4" Male JIC

2603-16-16-12-FG is a 1" Male JIC x 1" Male JIC x 3/4" Male JIC in the 2603-FG Series. For joining three 37° flared tubes or lines in a tee configuration.

  • Steel
  • Trivalent Zinc
  • Union Tee
$25.50
(0) Write a Review
SKU:
2603-16-16-12-FG

Product Details

Connection A
TypeMale JIC
Tube OD1"
StandardSAE J514 - Class 2A Thread
Thread Type1-5/16-12 UN
Connection B
TypeMale JIC
Tube OD1"
StandardSAE J514 - Class 2A Thread
Thread Type1-5/16-12 UN
Connection C
TypeMale JIC
Tube OD3/4"
StandardSAE J514 - Class 2A Thread
Thread Type1-5/16-12 UN
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeUnion Tee
Weight0.91 lb
Cross References
Aeroquip2033-12-16-16S
Parker16-16-12 JTX-S
SAE Ref.SAE J514 16-16-12 070401C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
