HGW HYDRAULICS

2603-16-16-16

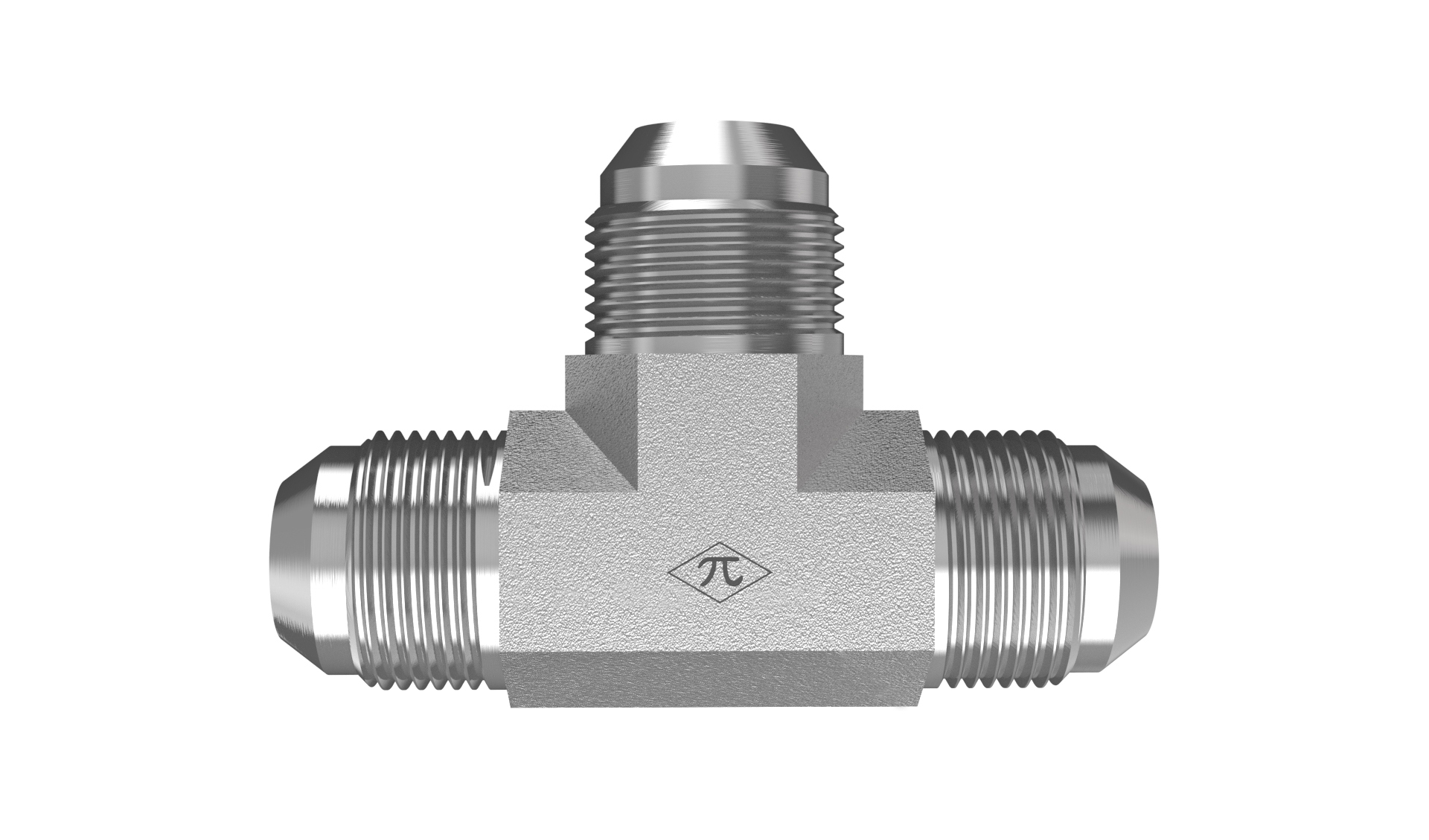

1" Male JIC 37° Flare × 1" Male JIC 37° Flare × 1" Male JIC 37° Flare · Union Tee

The HGW 2603-16-16-16-FG is a union tee joining 1" male JIC 37° flare connections across all 3 ports. Made from trivalent-zinc-plated steel, it uses SAE J514 interfaces for compatible hydraulic applications.

  • Steel
  • Trivalent Zinc
  • Union Tee
$13.72
(0) Write a Review
SKU:
2603-16-16-16

Product Details

Connection A
TypeMale JIC 37° Flare
Tube Size1"
StandardSAE J514 · Class 2A Thread
Thread1-5/16-12
Connection B
TypeMale JIC 37° Flare
Tube Size1"
StandardSAE J514 · Class 2A Thread
Thread1-5/16-12
Connection C
TypeMale JIC 37° Flare
Tube Size1"
StandardSAE J514 · Class 2A Thread
Thread1-5/16-12
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeUnion Tee
Weight0.94 lb
Cross References
Aeroquip2033-16-16S
Parker16 JTX-S
SAE Ref.SAE J514 16-16-16 070401C

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
